Panel saws are used for precise cutting and angularly accurate sizing of wooden panels, plastics and non-ferrous metals. There are different format settings for adjusting the parallel, angle or miter fence. Format settingsrequire high precision and reproducibility depending on the material. Magnetic linear measuring systems and position indicators for rotary settings have proven to be a reliable and economical solution.

Cary Mulvany

Manager Business Unit Changeover Solutions

+1 734 426-3476 cary.mulvany(at)siko-global.com

Matthew Wallace

Product Manager Business Unit Changover Solutions/Applications &

+1 734 426-3476 matthew.wallace(at)siko-global.com

Find the right positioning system

Positioning systems for panel saws by SIKO

Rip fence format adjustment

Mains-independent position indicator in compact design
Dirt-resistant and wear-free measuring principle
Electronic displays freely configurable

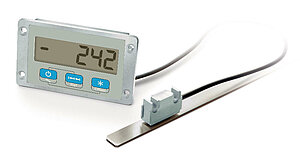

SIKO Global, Measurement display MA508/1

Display accuracy max. 0.01 mm

Repeat accuracy 0.01 mm

Low-power LCD with integrated sensor

Go to Product

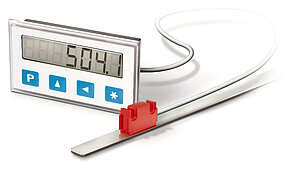

SIKO Global, Measurement display MA504/1

Display accuracy max. 10 μm

Repeat accuracy max. ±0.01 mm

Lowest-power LCD

Go to Product

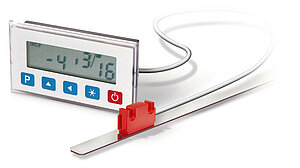

SIKO Global, Measurement display MA503/2

Max. display accuracy 10 μm or 1/64 inch

Repeat accuracy max. ±0.01 mm

Low-power LCD with decimal and fraction-inch function

Go to Product

Format adjustment of the miter fence with magnetic measuring system

Backlash-free position value detection
Direct detection of the angular position via flexible magnetic tape
Free programming of the measuring display for clear angle display
High resolution and accuracy
Simple installation

Max. display accuracy 10 μm or 1/64 inch

Repeat accuracy max. ±0.01 mm

Low-power LCD with decimal and fraction-inch function

Go to Product

Display accuracy max. 10 μm

Repeat accuracy max. ±0.01 mm

Lowest-power LCD

Go to Product

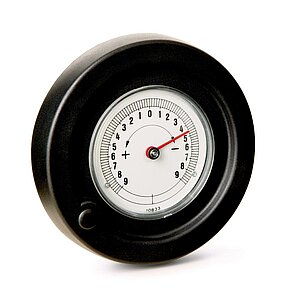

Angular saw blade position with handwheel and position indicator

Cost-effective and compact angle adjustment
Customized scale design
Different versions in terms of material and size
Simple operation

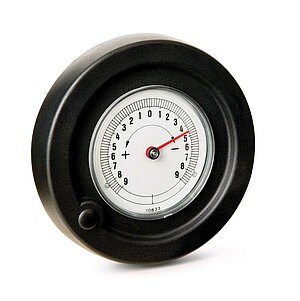

Robust and economic plastic handwheel

Hub made of zinc-coated steel for high stability and easy shaft mounting

Various hub versions

Go to Product

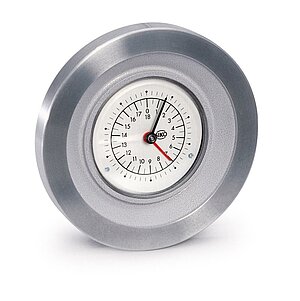

Classical handwheel made of aluminum casting

Plastic-coated or bright-finished surface

Various hub versions

Go to Product
