Find the right positioning system

Positioning systems for dowel drilling machines by SIKO

1

Vertical format adjustment with mechanical/electronic position indicators

Fitting Products

1

Vertical format adjustment with mechanical/electronic position indicators

Fitting Products

2

Vertical format adjustment with linear magnetic measuring system

Fitting Products

2

Vertical format adjustment with linear magnetic measuring system

Fitting Products

3

Horizontal tool positioning with electronic position indicators

Fitting Products

3

Horizontal tool positioning with electronic position indicators

Fitting Products

4

Horizontal tool positioning with linear magnetic measuring systems

Fitting Products

4

Horizontal tool positioning with linear magnetic measuring systems

Fitting Products
1

Vertical format adjustment with mechanical/electronic position indicators

  • Clear display of position values
  • Large selection of display values for different spindle types
  • Simple hollow shaft mounting for adjusting spindles with different diameters
  • Electronic displays with high resolution
SIKO Global, Digital position indicator DA09S

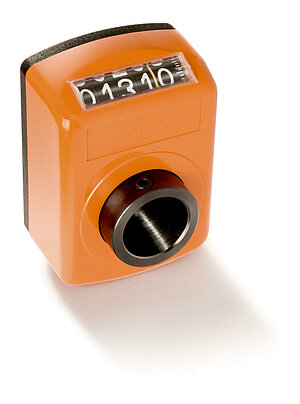

Digital position indicator DA09S

  • Most-used size in slim design

  • Hollow shaft, max. Ø 20 mm

  • Counter with 5 decades and fine reading

Go to Product
SIKO Global, Electronic position indicator DE10

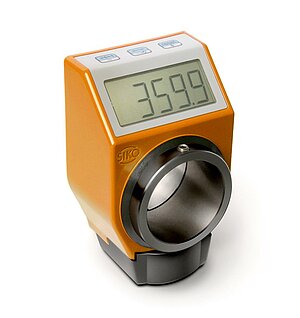

Electronic position indicator DE10

  • Freely programmable electronic digital display for length or angular measurement

  • Freely programmable via the ProToolDE programming software

  • Hollow shaft, max. Ø 30 mm

Go to Product
2

Vertical format adjustment with linear magnetic measuring system

  • Backlash-free position value detection
  • Robust against contamination
  • High resolution and accuracy
  • Direct input of reference/offset value
  • Simple installation
SIKO Global, Measurement display MA506
Measurement display MA506

  • Display accuracy max. 10 μm

  • Repeat accuracy max. ±0.01 mm

  • Incremental measurement and reset function

Go to Product
SIKO Global, Measurement display MA504/1
Measurement display MA504/1

  • Display accuracy max. 10 μm

  • Repeat accuracy max. ±0.01 mm

  • Lowest-power LCD

Go to Product
SIKO Global, Measurement display MA503/2

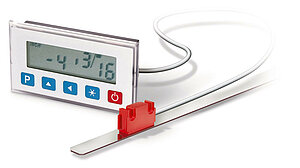

Measurement display MA503/2

  • Max. display accuracy 10 μm or 1/64 inch

  • Repeat accuracy max. ±0.01 mm

  • Low-power LCD with decimal and fraction-inch function

Go to Product
3

Horizontal tool positioning with electronic position indicators

  • Freely programmable even with high display values with rack and pinion
  • Buttons for zeroing and chain dimension
  • Compatible with mechanical position indicators
SIKO Global, Electronic position indicator DE10
Electronic position indicator DE10

  • Freely programmable electronic digital display for length or angular measurement

  • Freely programmable via the ProToolDE programming software

  • Hollow shaft, max. Ø 30 mm

Go to Product
SIKO Global, Electronic position indicator DE10P

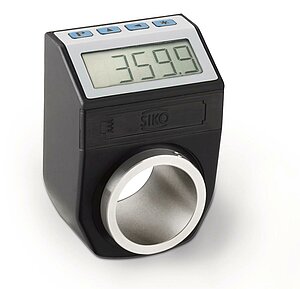

Electronic position indicator DE10P

  • Freely programmable directly via buttons on the device

  • Hollow shaft, max. Ø 30 mm

  • Stainless-steel hollow shaft

Go to Product
SIKO Global, Electronic position indicator DE04

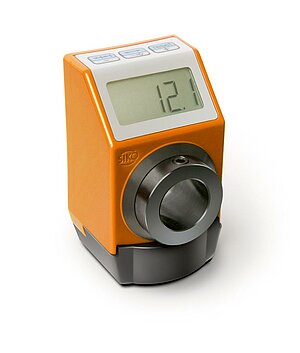

Electronic position indicator DE04

  • Freely programmable electronic digital display for length or angular measurement

  • Freely programmable via the ProToolDE programming software

  • Hollow shaft, max. Ø 14 mm

Go to Product
4

Horizontal tool positioning with linear magnetic measuring systems

  • Direct backlash-free position value detection without rack and pinion
  • Robust against contamination
  • High resolution and accuracy
  • Compact measuring displays
  • Simple installation
SIKO Global, Measurement display MA502
Measurement display MA502

  • Display accuracy max. 10 μm

  • Repeat accuracy max. ±0.01 mm

  • High-contrast LCD, 12-digit LCD dot matrix

Go to Product
SIKO Global, Measurement display MA506
Measurement display MA506

  • Display accuracy max. 10 μm

  • Repeat accuracy max. ±0.01 mm

  • Incremental measurement and reset function

Go to Product
SIKO Global, Measurement display MA504/1
Measurement display MA504/1

  • Display accuracy max. 10 μm

  • Repeat accuracy max. ±0.01 mm

  • Lowest-power LCD

Go to Product
SIKO Global, Measurement display MA503/2
Measurement display MA503/2

  • Max. display accuracy 10 μm or 1/64 inch

  • Repeat accuracy max. ±0.01 mm

  • Low-power LCD with decimal and fraction-inch function

Go to Product
