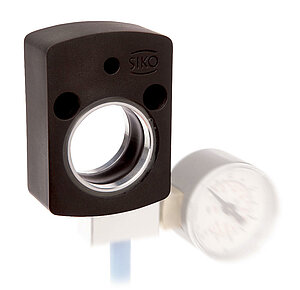

Digital position indicator DA09S
Basic device with 5 decades
- Most-used size in slim design
- Hollow shaft, max. Ø 20 mm
- Counter with 5 decades and fine reading
- Display can be designed for “mm” or “inch”
- Magnifying function for good readability
- Stainless-steel driving shaft as an option
- Axial seal, dustproof and splash-proof

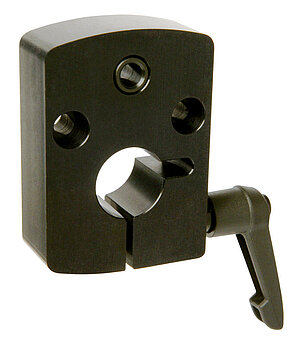

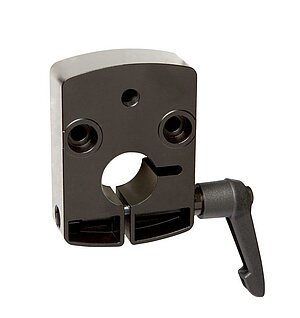

- Clamping plate (see accessories)
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
0.1
kg
Housing
reinforced plastic
zinc die-cast
MCM housing
Sight window
plastic
mineral glass as an option
Counter
5
Decades with fine reading
Digit height
~7
mm
max. speed
|
Display (after 1st revolution) |
max. speed [rpm] |
|
00010 |
500 (1500) |
|
00015 |
500 (1000) |
|
00020 |
500 (750) |
|
00025 |
500 (600) |
|
00030 |
500 |
|
00040 |
375 |
|
00050 |
300 |
|
00060 |
250 |
|
00080 |
180 |
|
00100 |
150 |
Note
Speeds >500 rpm must only be run for short periods.
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 80 °C
Purchase order
Ordering information
Note: Highlights in orange are order features.
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Mounting position
02
see the icons illustrating the mounting positions
indication after 1st revolution
10
/5 = arithmetical value not displayed
decimal place
0
Counting direction
i
hollow shaft/
diameter
20

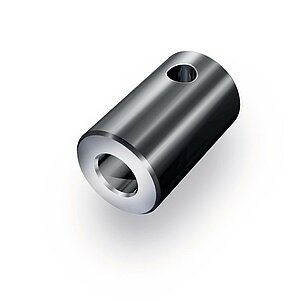

reducing bushes
stainless steel
Housing
O
plastic
plastic
plastic
plastic
metal
seal
OAD
sealing plate not applicable
Intermediate plate
OZP
"not with seal ""GD"""
Accessories
Scope of delivery
- DA09S
