Find the right encoder

Encoder solutions for portal axes from SIKO

1

Position and speed detection with incremental, magnetic measuring systems

Fitting Products

1

Position and speed detection with incremental, magnetic measuring systems

Fitting Products

2

Position and speed detection with absolute, magnetic measuring systems

Fitting Products

2

Position and speed detection with absolute, magnetic measuring systems

Fitting Products
1

Position and speed detection with incremental, magnetic measuring systems

  • High positioning accuracy and resolution
  • Wear-free thanks to non-contact scanning
  • High operational reliability
  • Insensitive to dirt and moisture
  • Compact design
SIKO Global, Magnetic sensor LEC100

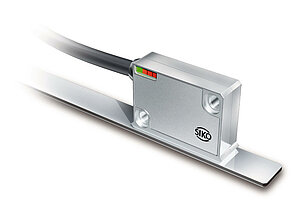

Magnetic sensor LEC100

  • Repeat accuracy max. ±1 μm

  • Max. resolution 0.1 µm (LD output circuit)

  • Reading distance 0.1 … 0.4 mm

Go to Product
SIKO Global, Magnetic sensor LEC160
Magnetic sensor LEC160

  • Repeat accuracy max. ±1 μm

  • Max. resolution 0.1 µm (LD output circuit)

  • Reading distance 0.1 … 0.8 mm

Go to Product
SIKO Global, Magnetic sensor LEC200
Magnetic sensor LEC200

  • Repeat accuracy max. ±2 μm

  • Max. resolution 0.2 µm (LD output circuit)

  • Reading distance 0.1 … 1 mm

Go to Product
SIKO Global, Magnetic sensor LE100/1
Magnetic sensor LE100/1

  • Repeat accuracy max. ±1 μm

  • LED status display

  • Works with MB100/1 magnetic tape

Go to Product
SIKO Global, Magnetic sensor MSK1000
Magnetic sensor MSK1000

  • Max. resolution 0.2 μm

  • Repeat accuracy ±1 μm

  • LED status display

Go to Product
SIKO Global, Magnetic sensor MSK200/1
Magnetic sensor MSK200/1

  • Max. resolution 0.4 μm

  • Works with MB200/1 magnetic tape, MR200 magnetic ring, MBR200 magnetic tape ring

  • Reading distance ≤1 mm

Go to Product
2

Position and speed detection with absolute, magnetic measuring systems

  • Precise, repeatable and robust encoders
  • Wear-free thanks to non-contact scanning
  • No referencing necessary after power cut-off
SIKO Global, Magnetic sensor MSA111C

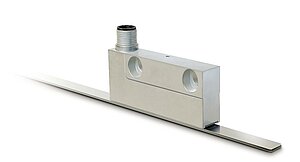

Magnetic sensor MSA111C

  • Additional analog real-time signal output Sin/Cos 1 VSS for highly dynamic control (SSI/RS485)

  • Repeat accuracy 2 μm

  • System accuracy up to 10 μm

Go to Product
SIKO Global, Magnetic sensor MSA213C
Magnetic sensor MSA213C

  • High absolute resolution 1 μm

  • Repeat accuracy max. ±1 μm

  • Reading distance ≤0.8 mm

Go to Product

SIKO Application Reports

Magnetic sensors ensure faultless operation of safety functions

The new Machinery Directive 2006/42/EC has now been in force for some time, making it increasingly important for safety-related features to be implemented in mechanical engineering. In doing so, it is essential that safety features are guaranteed…

Learn more
Liquid handling system from Hamilton using SIKO magnetic measurement technology

Automated liquid handling systems have become crucial laboratory fixtures. They let you perform tests and analyses of thousands of substances and with greater speed, accuracy and most of all, reproducibility. To save even more time and enhance…

Learn more
