Aerial work platforms

Header Graphic Illustration Construction Machinery at Work

The machine must be stable to ensure safe operation. Safe sensors from SIKO ensure that the position of outriggers, booms, uppercarriages and entire vehicles is always detected precisely and reliably and that safety for people and the environment is always guaranteed. Our wide range of draw-wire encoders, rotary encoders and inclination sensors provides a wide range of possibilities.

August Meyers

Manager Business Unit Mobile Automation

+1 734 426-3476 august.meyers(at)siko-global.com

Edward Stuart

Product Manager Business Unit MagLine

+1 734 426-3476 edward.stuart(at)siko-global.com

Find the right sensor technology

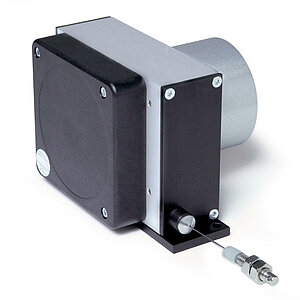

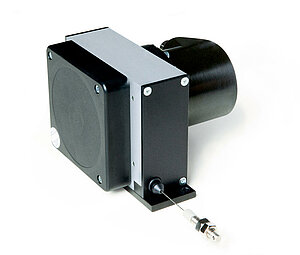

Position detection of telescopic elements

Precise position detection for calculating load torque limitation
Safe variants for use in safety-critical applications up to PLd
Extremely compact design enables easy integration even where installation space is limited

Robust design

Easy mounting

Measurement lengths up to max. 6000 mm

Go to Product

Robust design

Measuring lengths up to 6000 mm

Analogue signal output in redundant design (2x 4…20 mA or potentiometer)

Go to Product

Robust design

Easy mounting

Measurement lengths up to max. 12000 mm

Go to Product

Very compact design

Measurement lengths up to max. 15000 mm

Flexible wire outlet thanks to Wire-Flex technology

Go to Product

Angle detection of telescopic elements

Cylinder-integrated: no drilling of the piston necessary
Rotary: robust and safe rotary encoders provide precise angle values for calculating load torque limitation
Inclination: reliable inclination detection even under high levels of interference, such as shocks and vibrations

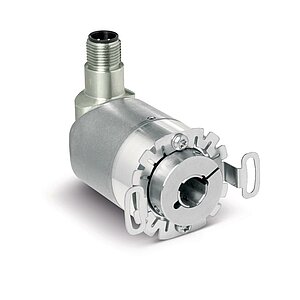

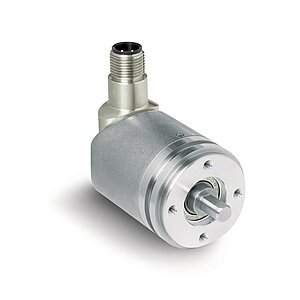

Smallest safety multiturn rotary encoder for mobile machines

Single turn or multiturn variant available

SIL2 (IEC 61508) PLd (DIN EN ISO 13849) certified (in preparation)

Go to Product

CANopen (DS406) or SAE J1939 interface

Extremely compact design with ø36 mm flange

Single turn or multiturn variant available

Go to Product

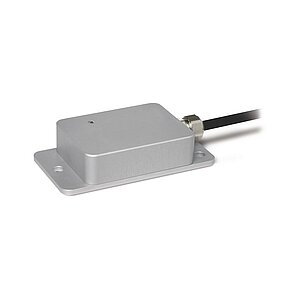

6 Axis Inertial Measurement Unit (IMU)

Compensation of external acceleration thanks to innovative sensor fusion

Dynamically compensated inclination measurement (360° or ±90°)

Go to Product

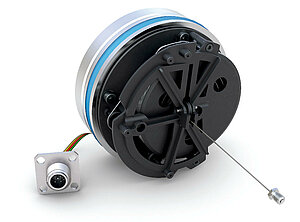

Measuring range 0 … 2500 mm (98.42 inches)

Absolute measuring system

Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product

absolute redundant safety encoders

CANopen Safety or CANopen redundant interface

Can be used in applications up to performance level PLd

Go to Product

CANopen (DS406) or SAE J1939 interface

Salt spray tested housing available

High EMC compatibility

Go to Product

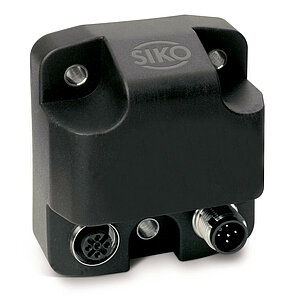

Redundant one-axis or two-axis inclination sensor (0 … 360° oder -80 … +80°)

Resolution of 0.001°

Accuracy ±0.8°, over the entire measuring and temperature ranges

Go to Product

Detection of slewing ring positions

Extremely robust encoder with high bearing load
Use in safety-critical applications up to PLd
Available with special slewing ring functionality

Smallest safety multiturn rotary encoder for mobile machines

Single turn or multiturn variant available

SIL2 (IEC 61508) PLd (DIN EN ISO 13849) certified (in preparation)

Go to Product

CANopen (DS406) or SAE J1939 interface

Extremely compact design with ø36 mm flange

Single turn or multiturn variant available

Go to Product

Smallest safety multiturn rotary encoder for mobile machines

Single turn or multiturn variant available

SIL2 (IEC 61508) PLd (DIN EN ISO 13849) certified (in preparation)

Go to Product

absolute redundant safety encoders

CANopen Safety or CANopen redundant interface

Can be used in applications up to performance level PLd

Go to Product

CANopen (DS406) or SAE J1939 interface

Salt spray tested housing available

High EMC compatibility

Go to Product

absolute redundant safety encoders

CANopen Safety or CANopen redundant interface

Can be used in applications up to performance level PLd

Go to Product

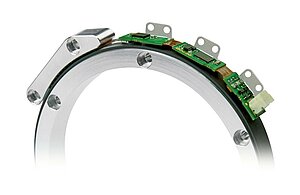

Position detection of the slewing ring position in a slip ring

Space-saving integration directly in a slip ring
Large hollow shaft diameters available for the feed-through of hydraulic lines
Bearingless and wear-free magnetic measuring technology

Industrial and medical applications e.g., motor feedback, handling automation and robotics

Integration into small installation space possible

Absolute resolution up to 20 Bit

Go to Product

Integration into small installation space possible

Use with MSAC200 magnetic sensor

Different hollow shaft diameters (customized adjustments on request)

Go to Product

Position detection of support beams

Durable & robust draw-wire encoders for precise position detection
Compact draw-wire encoders enable integration in support beams or complete integration of a sensor in hydraulic cylinders
Safety version available for use in applications up to PLd

Measuring range 0 … 2500 mm (98.42 inches)

Absolute measuring system

Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product

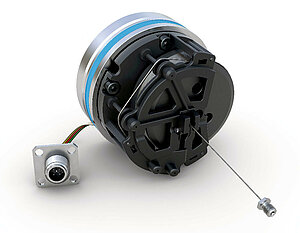

Measuring range 0 … 5000 mm (196.85 inches)

Absolute measuring system

Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product

Compact design

Universally applicable thanks to standardized interfaces

Easy mounting

Go to Product

Wire-actuated encoder for rotary encoder with max. Ø36 mm flange

Measurement lengths up to 2000 mm

Sturdy zinc die-cast housing, robust design, stable measuring rope (stainless steel)

Go to Product

Compact, robust design

Variable mounting options

Measuring lengths up to 3000 mm

Go to Product

Robust design

Measuring lengths up to 3000 mm

Wire-actuated encoder for rotary encoder with 58 mm servo-flange

Go to Product

Tilt detection of an entire vehicle

Reliable monitoring of stability
High accuracy even with strong interference and over the entire temperature and measuring ranges
High degree of protection makes it ideal for harsh environmental conditions

Redundant one-axis or two-axis inclination sensor (0 … 360° oder -80 … +80°)

Resolution of 0.001°

Accuracy ±0.8°, over the entire measuring and temperature ranges

Go to Product

6 Axis Inertial Measurement Unit (IMU)

Compensation of external acceleration thanks to innovative sensor fusion

Dynamically compensated inclination measurement (360° or ±90°)

Go to Product

Inclination measurement of work baskets

Compensation of external disturbance variables such as shocks, vibrations and lateral acceleration
High accuracy over the entire measurement and temperature ranges
Suitable for safety-critical applications up to PLd

6 Axis Inertial Measurement Unit (IMU)

Compensation of external acceleration thanks to innovative sensor fusion

Dynamically compensated inclination measurement (360° or ±90°)

Go to Product

Redundant one-axis or two-axis inclination sensor (0 … 360° oder -80 … +80°)

Resolution of 0.001°

Accuracy ±0.8°, over the entire measuring and temperature ranges

Go to Product

SIKO Application Reports

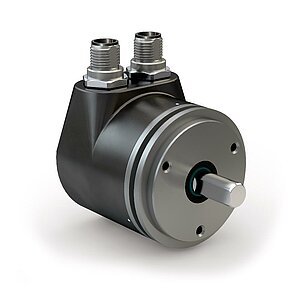

Heavy machinery in specialist civil engineering requires precise and reliable components in order to be able to perform the respective functions reliably. The absolute rotary encoders WV58MR from SIKO GmbH, manufacturer of sensors and positioning…

Learn more

Measurement and sensor solutions from SIKO are not only found in established industrial applications, SIKO GmbH is also currently supporting an agricultural research and development project with two rotary encoders from its range for mobile machines.

Learn more

MORE THAN 60 YEARS OF EXPERIENCE

300 EMPLOYEES WORLDWIDE

GLOBAL PRESENCE IN 50 COUNTRIES

MADE IN GERMANY
