Draw-wire encoder SG121
robust design with 12 m measurement length
Universally usable wire-actuated encoder with measuring lengths of max. 12000 mm, robust design as well as precise and safe wire guidance; prepared for the attachment of various types of rotary encoders with 58 mm standard flange. In combination with a safety encoder from the PURE.MOBILE sensor platform, the wire-actuated encoder can also be used in safety-critical applications up to Performance Level PLd. Furthermore, the wire-actuated encoder can also be used in safety-critical applications up to Performance Level Pld for easy parameterization.
- Robust design
- Easy mounting
- Measurement lengths up to max. 12000 mm
- Flexible wire outlet thanks to Wire-Flex technology
- Incremental or absolute encoder
- Also available as a safety version in combination with WV58MR rotary encoder
- High flexibility thanks to free choice of rotary encoders with 58 mm standard flange
- Various wire types
- with PURE.MOBILE technology
Ben
King
Inside Sales
August
Meyers
Manager Business Unit Mobile Automation
Technical drawing
Technical Specifications
Mechanical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Housing
aluminum/plastic
Wire design
ø0.6
mm
rustproof stainless steel
ø0.6
mm
rustproof stainless steel, plastic-coated
ø0.6
mm
para-line
Extension force
≥8
N
on the rope
Measured distance/ rope drum revolution
200
mm
Feature
Technical Specifications
Enhancement
Repeat accuracy
±0.15
mm
mechanical, depending on the direction of travel (1st position)
Measuring range
≤12000
mm
Feature
Technical Specifications
Enhancement
Ambient temperature
-20 … +80 °C
Protection category
depending on the rotary encoder installed
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
100 m/s2, 5 … 150 Hz
EN 60068-2-6
More information

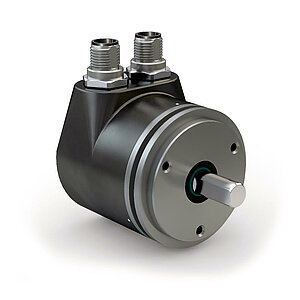

Rotary encoders that can be combined with this wire-actuated encoder
You can find suitable rotary encoders on our website www.siko-global.com. They are suitable …
The technical specifications for these devices can be found in the respective data sheets. In addition, numerous encoder variants from different manufacturers can be used.
- for analog outputs such as current or voltage: AV3650M, AV58M
- for incremental outputs: IV5800
- for absolute outputs: WV58MR, WV5800M, WV5850, WV3650M, WV36M/CAN
The technical specifications for these devices can be found in the respective data sheets. In addition, numerous encoder variants from different manufacturers can be used.
Extension length/measuring range
SIKO wire-actuated encoders achieve the maximum measuring accuracy when the entire wire length (measuring range) is only wound onto the drum in one layer. On the SG121, the wire diameter is selected so that when the first drum layer is used, a maximum measuring range of 6000 mm is possible.
If a lower measuring accuracy is acceptable, two to three layer winding is also possible, and the possible measuring lengths change accordingly.
If a lower measuring accuracy is acceptable, two to three layer winding is also possible, and the possible measuring lengths change accordingly.
Dimensions in millimeters
Hint for mounting
When securing the wire it must be ensured that the wire is straight and vertical in relation to the wire outlet. Recommendation: Only select the starting position after an unwound length of approx. 5 mm. This prevents the wire hitting the end stop when it is rewound.
Symbolic representation
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Measuring range
7000
in mm
rope fixture
GW
wire design
S
encoder type
OG6
position of electrical connection
1
depending on the mounted encoder
Comparable products
Scope of delivery
- SG121
- Quick Start Guide
