Linear drives are often used as positioning drives in machine tools. They are used where a very good force-to-mass ratio and optimum synchronization are required. Precise position and speed control is of crucial importance in these applications. SIKO encoders can either run parallel to the linear axis or be integrated directly into the drive, whereby the motor magnets are read by means of pole sensors.

Find out more about the advantages on our page "MagLine Fundamentals – Advantages and Application of Magnetic Encoders"

Edward Stuart

Product Manager Business Unit MagLine

+1 734 426-3476 edward.stuart(at)siko-global.com

August Meyers

Manager Business Unit Mobile Automation

+1 734 426-3476 august.meyers(at)siko-global.com

Find the right encoder

Position and speed detection with incremental, magnetic measuring systems

Path information either digital or analog in real time for fast and dynamic control
Wear-free thanks to non-contact scanning
High vibration and shock resistance
Various sizes down to circuit board solutions

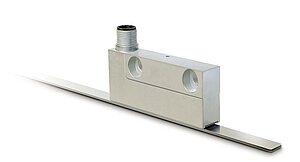

Repeat accuracy max. ±1 μm

Max. resolution 0.1 µm (LD output circuit)

Reading distance 0.1 … 0.4 mm

Go to Product

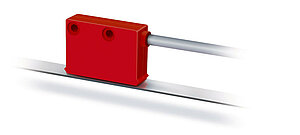

Repeat accuracy max. ±1 μm

Max. resolution 0.1 µm (LD output circuit)

Reading distance 0.1 … 0.8 mm

Go to Product

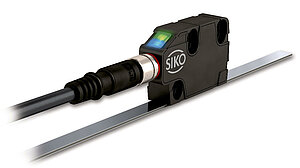

Repeat accuracy max. ±2 μm

Max. resolution 0.2 µm (LD output circuit)

Reading distance 0.1 … 1 mm

Go to Product

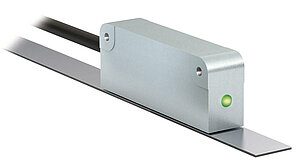

Repeat accuracy max. ±1 μm

LED status display

Works with MB100/1 magnetic tape

Go to Product

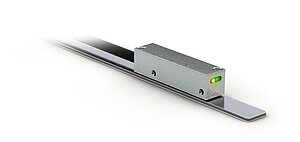

Max. resolution 0.2 μm

Repeat accuracy ±1 μm

LED status display

Go to Product

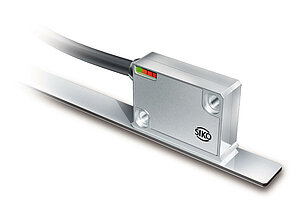

Max. resolution 0.4 μm

Works with MB200/1 magnetic tape, MR200 magnetic ring, MBR200 magnetic tape ring

Reading distance ≤1 mm

Go to Product

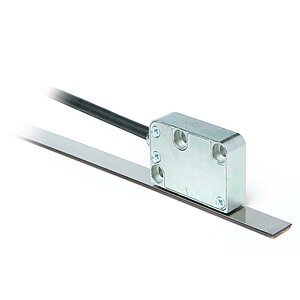

Max. resolution 12.5 μm

max. resolution 0.006° with MR320 or MBR320 (250 poles)

Repeat accuracy ±0.04 mm

Go to Product

max. resolution 1 μm

max. 200000 pulses/revolution in conjunction with MR500 or MBR500 (160 poles)

Repeat accuracy ±0.005 mm

Go to Product

Position and speed detection with absolute, magnetic measuring systems

Precise, repeatable and robust encoders
Wear-free thanks to non-contact scanning
No referencing necessary after power cut-off
Industry 4.0-ready

Additional analog real-time signal output Sin/Cos 1 V_SS for highly dynamic control (SSI/RS485)

Repeat accuracy 2 μm

System accuracy up to 10 μm

Go to Product

High absolute resolution 1 μm

Repeat accuracy max. ±1 μm

Reading distance ≤0.8 mm

Go to Product

Position and speed detection using pole sensors

Use of the motor magnets as a scale for speed and position
Adaptation of pole sensors to the pole length of the motor
Additional reading of the pole type (north/south) for motor commutation possible
Extremely compact

Additional analog real-time signal output Sin/Cos 1 V_SS for highly dynamic control (SSI/RS485)

Repeat accuracy 2 μm

System accuracy up to 10 μm

Go to Product

High absolute resolution 1 μm

Repeat accuracy max. ±1 μm

Reading distance ≤0.8 mm

Go to Product
