Find the right sensor technology

SIKO sensor solutions for mobile cranes

1

Position detection of the telescope

Fitting Products

1

Position detection of the telescope

Fitting Products

2

Detection of the slewing ring position

Fitting Products

3

Detection of the slewing ring position in the slip ring

Fitting Products

2

Detection of the slewing ring position

Fitting Products

3

Detection of the slewing ring position in the slip ring

Fitting Products

4

Position detection of the support beams

Fitting Products

4

Position detection of the support beams

Fitting Products

5

Detection of the installation angle of the boom

Fitting Products

5

Detection of the installation angle of the boom

Fitting Products

6

Position and speed detection of the cable winch

Fitting Products

6

Position and speed detection of the cable winch

Fitting Products

7

Tilt detection of the entire vehicle

Fitting Products

7

Tilt detection of the entire vehicle

Fitting Products
1

Position detection of telescopes

  • Precise position detection for calculating the load torque limitation
  • Safe variants for use in safety-critical applications up to PLd
  • Extremely compact design enables easy integration even in limited installation space

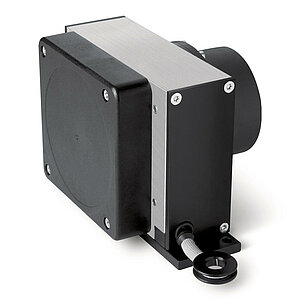

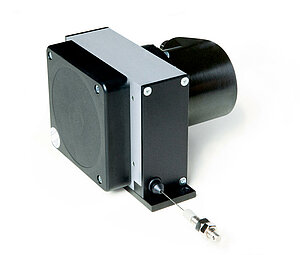

SIKO Global, Draw-wire encoder SG61
Draw-wire encoder SG61

  • Robust design

  • Easy mounting

  • Measurement lengths up to max. 6000 mm

Go to Product
SIKO Global, Draw-wire encoder SG121
Draw-wire encoder SG121

  • Robust design

  • Easy mounting

  • Measurement lengths up to max. 12000 mm

Go to Product

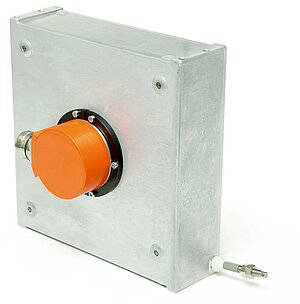

SIKO Global, Draw-wire encoder SG150
Draw-wire encoder SG150

  • Very compact design

  • Measurement lengths up to max. 15000 mm

  • Flexible wire outlet thanks to Wire-Flex technology

Go to Product
2

Detection of slewing ring positions

  • Extremely robust encoder with high bearing load
  • Use in safety-critical applications up to PLd
  • Available with special slewing ring functionality

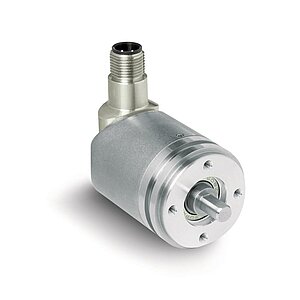

SIKO Global, Absolute encoder WV3600MR
Absolute encoder WV3600MR

  • Smallest safety multiturn rotary encoder for mobile machines

  • Single turn or multiturn variant available

  • SIL2 (IEC 61508) PLd (DIN EN ISO 13849) certified (in preparation)

Go to Product
SIKO Global, Absolute encoder WV3600M
Absolute encoder WV3600M

  • CANopen (DS406) or SAE J1939 interface

  • Extremely compact design with ø36 mm flange

  • Single turn or multiturn variant available

Go to Product
SIKO Global, Absolute encoder WH3600MR

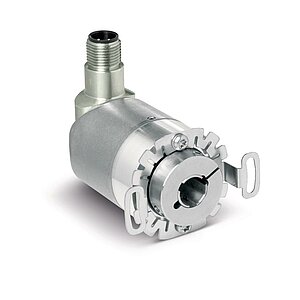

Absolute encoder WH3600MR

  • Smallest safety multiturn rotary encoder for mobile machines

  • Single turn or multiturn variant available

  • SIL2 (IEC 61508) PLd (DIN EN ISO 13849) certified (in preparation)

Go to Product
SIKO Global, Absolute encoder WV58MR
Absolute encoder WV58MR

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product
SIKO Global, Absolute encoder WV5800M
Absolute encoder WV5800M

  • CANopen (DS406) or SAE J1939 interface

  • Salt spray tested housing available

  • High EMC compatibility

Go to Product
SIKO Global, Absolute encoder WH58MR
Absolute encoder WH58MR

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product
3

Detection of the slewing ring position in slip rings

  • Space-saving integration directly in a slip ring
  • Large hollow shaft diameters available for the feed-through of hydraulic lines
  • Bearingless and wear-free magnetic measuring technology
SIKO Global, Magnetic sensor MSAC200
Magnetic sensor MSAC200

  • Industrial and medical applications e.g., motor feedback, handling automation and robotics

  • Integration into small installation space possible

  • Absolute resolution up to 20 Bit

Go to Product

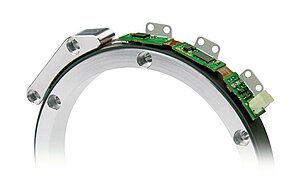

SIKO Global, Magnetic ring MRAC200

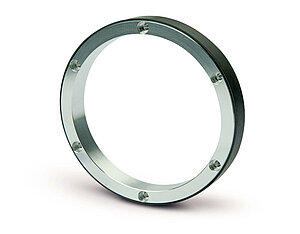

Magnetic ring MRAC200

  • Integration into small installation space possible

  • Use with MSAC200 magnetic sensor

  • Different hollow shaft diameters (customized adjustments on request)

Go to Product
4

Position detection of support beams

  • Durable & robust draw-wire encoders for precise position detection
  • Compact draw-wire encoders enable integration in support beams or complete integration of a sensor in hydraulic cylinders
  • Safety version available for use in applications up to PLd
SIKO Global, Draw-wire encoder SGH25

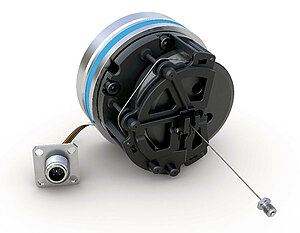

Draw-wire encoder SGH25

  • Measuring range 0 … 2500 mm (98.42 inches)

  • Absolute measuring system

  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product
SIKO Global, Draw-wire encoder SGH50

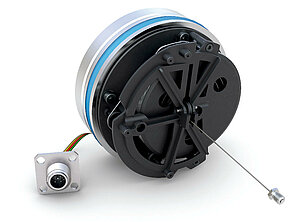

Draw-wire encoder SGH50

  • Measuring range 0 … 5000 mm (196.85 inches)

  • Absolute measuring system

  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product

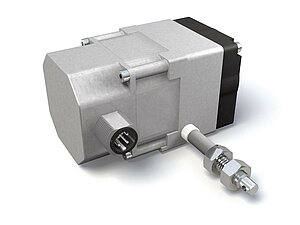

SIKO Global, Draw-wire encoder SG20
Draw-wire encoder SG20

  • Compact design

  • Universally applicable thanks to standardized interfaces

  • Easy mounting

Go to Product
SIKO Global, Draw-wire encoder SG21

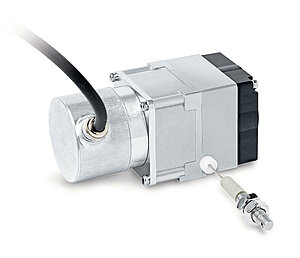

Draw-wire encoder SG21

  • Wire-actuated encoder for rotary encoder with max. Ø36 mm flange

  • Measurement lengths up to 2000 mm

  • Sturdy zinc die-cast housing, robust design, stable measuring rope (stainless steel)

Go to Product
SIKO Global, Draw-wire encoder SG30
Draw-wire encoder SG30

  • Compact, robust design

  • Variable mounting options

  • Measuring lengths up to 3000 mm

Go to Product

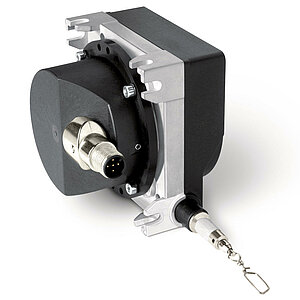

SIKO Global, Draw-wire encoder SG31

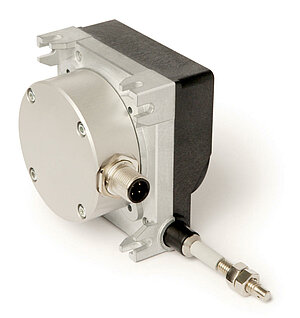

Draw-wire encoder SG31

  • Robust design

  • Measuring lengths up to 3000 mm

  • Wire-actuated encoder for rotary encoder with 58 mm servo-flange

Go to Product
5

Detection of the installation angle of booms

  • Cylinder-integrated: no drilling of the piston necessary
  • Rotary: robust and safe rotary encoders provide precise angle values for calculating load torque limitation
  • Inclination: reliable inclination detection even under strong interfering influences such as shocks and vibrations
SIKO Global, Absolute encoder WV3600MR
Absolute encoder WV3600MR

  • Smallest safety multiturn rotary encoder for mobile machines

  • Single turn or multiturn variant available

  • SIL2 (IEC 61508) PLd (DIN EN ISO 13849) certified (in preparation)

Go to Product
SIKO Global, Absolute encoder WV3600M
Absolute encoder WV3600M

  • CANopen (DS406) or SAE J1939 interface

  • Extremely compact design with ø36 mm flange

  • Single turn or multiturn variant available

Go to Product

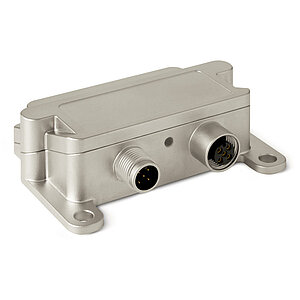

SIKO Global, Inclinometer IMS360

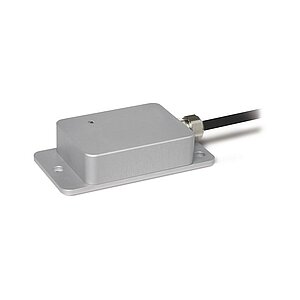

Inclinometer IMS360

  • 6 Axis Inertial Measurement Unit (IMU)

  • Compensation of external acceleration thanks to innovative sensor fusion

  • Dynamically compensated inclination measurement (360° or ±90°)

Go to Product
SIKO Global, Draw-wire encoder SGH25
Draw-wire encoder SGH25

  • Measuring range 0 … 2500 mm (98.42 inches)

  • Absolute measuring system

  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product
SIKO Global, Absolute encoder WV58MR
Absolute encoder WV58MR

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product
SIKO Global, Absolute encoder WV5800M
Absolute encoder WV5800M

  • CANopen (DS406) or SAE J1939 interface

  • Salt spray tested housing available

  • High EMC compatibility

Go to Product
SIKO Global, Inclinometer IKM360R

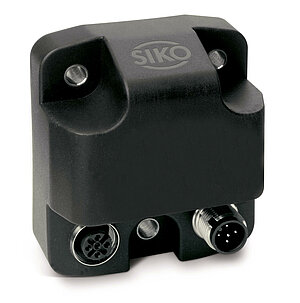

Inclinometer IKM360R

  • Redundant one-axis or two-axis inclination sensor (0 … 360° oder -80 … +80°)

  • Resolution of 0.001°

  • Accuracy ±0.8°, over the entire measuring and temperature ranges

Go to Product
6

Position and speed detection of cable winches

  • Precise detection of position and speed for the realization of dynamic automation solutions
  • Reliable mechanical coupling thanks to positive-locking shafts or highly integrated bearingless measurement technology
  • Use in safety-critical applications up to PLd for safe lifting and lowering of heavy loads
SIKO Global, Absolute encoder WV3600MR
Absolute encoder WV3600MR

  • Smallest safety multiturn rotary encoder for mobile machines

  • Single turn or multiturn variant available

  • SIL2 (IEC 61508) PLd (DIN EN ISO 13849) certified (in preparation)

Go to Product
SIKO Global, Absolute encoder WH3600MR
Absolute encoder WH3600MR

  • Smallest safety multiturn rotary encoder for mobile machines

  • Single turn or multiturn variant available

  • SIL2 (IEC 61508) PLd (DIN EN ISO 13849) certified (in preparation)

Go to Product
SIKO Global, Absolute encoder WV58MR
Absolute encoder WV58MR

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product
SIKO Global, Absolute encoder WV5800M
Absolute encoder WV5800M

  • CANopen (DS406) or SAE J1939 interface

  • Salt spray tested housing available

  • High EMC compatibility

Go to Product

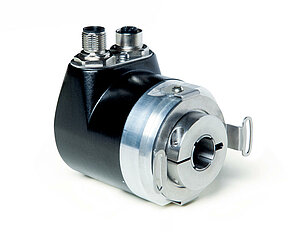

SIKO Global, Absolute encoder WH5800M
Absolute encoder WH5800M

  • Hollow shaft to ø 15 mm

  • CANopen (DS406) or SAE J1939 interface

  • Salt spray tested housing available

Go to Product
SIKO Global, Absolute encoder WH58MR
Absolute encoder WH58MR

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product
SIKO Global, Magnetic sensor MSAC200
Magnetic sensor MSAC200

  • Industrial and medical applications e.g., motor feedback, handling automation and robotics

  • Integration into small installation space possible

  • Absolute resolution up to 20 Bit

Go to Product
SIKO Global, Magnetic ring MRAC200
Magnetic ring MRAC200

  • Integration into small installation space possible

  • Use with MSAC200 magnetic sensor

  • Different hollow shaft diameters (customized adjustments on request)

Go to Product
7

Tilt detection of an entire vehicle

  • Reliable monitoring of stability
  • High accuracy even with strong interference and over the entire temperature and measuring ranges
  • High degree of protection makes it ideal for harsh environmental conditions
SIKO Global, Inclinometer IMS360
Inclinometer IMS360

  • 6 Axis Inertial Measurement Unit (IMU)

  • Compensation of external acceleration thanks to innovative sensor fusion

  • Dynamically compensated inclination measurement (360° or ±90°)

Go to Product
SIKO Global, Inclinometer IKM360R
Inclinometer IKM360R

  • Redundant one-axis or two-axis inclination sensor (0 … 360° oder -80 … +80°)

  • Resolution of 0.001°

  • Accuracy ±0.8°, over the entire measuring and temperature ranges

Go to Product
