Draw-wire encoder SG31NEO

Robust and compact design for 3000 mm measuring length
SIKO Global, Draw-wire encoder SG31NEO
SIKO Global, Draw-wire encoder SG31NEO
SIKO Global, Draw-wire encoder SG31NEO
SIKO Global, Draw-wire encoder SG31NEO
SIKO Global, Draw-wire encoder SG31NEO
SIKO Global, Draw-wire encoder SG31NEO
SIKO Global, Draw-wire encoder SG31NEO
SIKO Global, Draw-wire encoder SG31NEO
The SG31NEO with a measuring length of up to 3000 mm is based on the draw-wire mechanisms that have been known for years for their particularly excellent operational performance The SG31NEO provides a wide range of different wires, options to prevent icing, and many wire fastening variants to enable reliable functioning for years, even under the toughest conditions. Based on the latest version of the PURE.MOBILE sensor platform developed by SIKO, the SG31NEO is up to 25% narrower than its predecessors and is therefore perfect for integration into machines with limited installation space.
  • Measuring lengths up to 3000 mm
  • Robust design
  • Extremely compact design
  • Wear-free, magnetic measurement principle
  • High tightness at the rope outlet
  • Lockable ventilation holes against condensation
  • E1 approval by the German Federal Motor Transport Authority (KBA) pending
  • With PURE.MOBILE technology
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Konner Fierek
Konner Fierek
Key Account Manager Mobile Automation
+1 734 426-3476 konner.fierek(at)siko-global.com
Watch expert video
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Draw-wire encoder SG31NEO

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Housing
zinc die-cast
plastic
PA66
Wire design
ø0.61 mm
rustproof stainless steel, plastic-coated
ø0.6 mm
rustproof stainless steel
Extension force
≥9 N
Weight
~0.5 kg
Feature
Technical Specifications
Enhancement
Operating voltage
8 … 36 V DC
reverse polarity protection
Power input
≤1 W at 36 V
without load
Parameter storage
105 cycles
also applies to calibration operations
Status display
1x two-color LEDs (red/green)
device/CAN status
Power rating
±36 V
CAN interface
Interface
according to ISO 11898-1, not electrically isolated
Address
1 … 127
default: 1
Baud rate
20 kbit/s
50 kbit/s
125 kbit/s
250 kbit/s
default
500 kbit/s
800 kbit/s
1 Mbit/s
Cycle time
<10 ms
Starting time
<1000 ms
Parameter
according to CiA 301, CiA 303 Part 3, CiA 305, CiA 406
Type of connection
1x M12-plug connector (A-coded)
5-pole, 1x pin
Feature
Technical Specifications
Enhancement
Scanning
magnetic
Resolution
14 bit
16384 steps/revolution
Travel speed
≤800 mm/s
Feature
Technical Specifications
Enhancement
Ambient temperature
-40 … 80 °C
Storage temperature
-40 … 80 °C
EMC
EN 61326-1
industry immunity requirement, class B emission limit, shielded line required
EN 61326-3-1
industry immunity requirement, class B emission limit, shielded line required
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
ISO 7637-1, -2
transient pulses
ISO / TR 10605
electrostatic discharge (ESD)
ISO 11452-1, -2, -3, -4, -5
interference radiation ESA
Protection category
IP65
EN 60529, installed on the encoder side according to the assembly instructions
IP67
EN 60529, installed according to assembly instructions and with suitable mating connector
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27, half-sine, 3 axes (+/-), each 3 shocks
Vibration resistance
100 m/s2, 10 … 2000 Hz
EN 60068-2-6, 3 axes, each 10 cycles

More information

pin assignment

E12E

Signal
 PIN
nc
 1
+UB
 2
GND
 3
CAN_H
 4
CAN_L
 5

Hint for mounting

When securing the wire it must be ensured that the wire is straight and vertical in relation to the wire outlet. Recommendation: Only select the starting position after an unwound length of approx. 5 mm. This prevents the wire hitting the end stop when it is rewound.
Symbolic representation

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Measuring range

2000

2000

2000
in mm
2500
3000

Rope fixture

GW

GW

GW

wire suspension with thread

HK

wire suspension with hook

RI

wire suspension with ring

Wire design

S

S

S

rustproof stainless steel

SK

rustproof stainless steel, plastic-coated

Position of electrical connection

1

1

1

direction of wire outlet or axial

2

upward

3

opposite the wire outlet

4

downward

Your order key

SG31NEO - 2000 - GW - S - CAN - NR - 1 - E12E - OK - O - S
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Accessories

SIKO Global, Cable extension KV05S0
Cable extension KV05S0

  • Ready-to-use cable connection

  • Cable length 3 m

  • Connection technology M12 (A-coded), 5-pole

Go to Product
SIKO Global, Guide roller UR
Guide roller UR

  • For changing the measurement direction. Guide rollers are used when the wire-actuated encoder cannot be installed inline with the extension direction of the wire

  • Several guide rollers can be combined

Go to Product
SIKO Global, Wire extension piece SV
Wire extension piece SV

  • For extending the measurement wire or bridging the gap to the object to be measured. This does not extend the actual measurement range of the encoder, however

  • Easy mounting

Go to Product
SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
Additional Accessories
Order key
Mating connector, 5-pole, angle socket
83006
Mating connector, 5-pole, socket
84109
Bus terminating connector, 5-pole, pin
82815

Comparable products

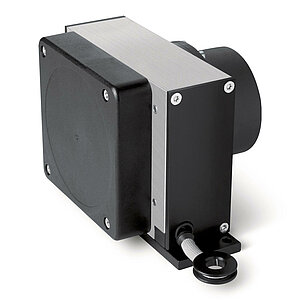

SIKO Global, Draw-wire encoder SG61NEO
Draw-wire encoder SG61NEO

  • Measuring lengths up to 6000 mm

  • Robust design

  • Extremely compact design

Go to Product

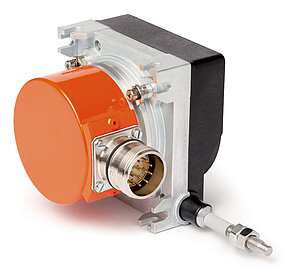

SIKO Global, Draw-wire encoder SG31
Draw-wire encoder SG31

  • Robust design

  • Measuring lengths up to 3000 mm

  • Wire-actuated encoder for rotary encoder with 58 mm servo-flange

Go to Product

Scope of delivery

  • SG31NEO
  • Quick Start Guide
