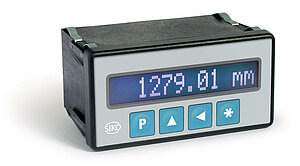

Measurement display MA506
incremental, LED display, display accuracy 10 μm
- Display accuracy max. 10 μm
- Repeat accuracy max. ±0.01 mm
- Incremental measurement and reset function
- Direct reference/offset value input
- Reference input
- Works with sensor MS500
Ben
King
Inside Sales
Edward
Stuart
Product Manager Business Unit MagLine
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Housing design
built-in housing, plastic (transparent red)
Control panel excerpt 68+0.7 x 33+0.6 IEC 61554
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Current consumption
<60
mA
at 24 V DC
Display/display range
5-digit, LED 7-segment, 10 mm height red
-99999 … 99999
Type of connection
screw terminal strip
3-pole (supply)
mini-DIN
6-pole, 1x socket (MS500 sensor)
Feature
Technical Specifications
Enhancement
Resolution
0.01
mm
,
0.05
,
0.1
,
1
programmable angle display
0.001
,
0.01
in
System accuracy
±(0.1 + 0.01 x L) mm, L in m
at TU = 20° C
Repeat accuracy
±0.01
mm
±1 digit
Travel speed
≤5
m/s
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 50 °C
Storage temperature
-20 … 85 °C
Relative humidity
≤95
%
condensation inadmissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP40 whole device
EN 60529
IP60 at the front with switchboard installation
EN 60529
More information
pin assignment
|
Signal |
|
GND |
|
+UB |
|
Reset |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Scope of delivery
- MA506
- Installation Instructions
