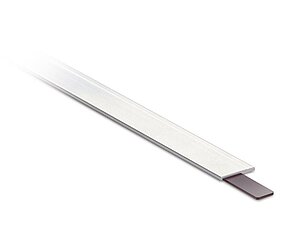

Magnetic tape MB500/1
Incrementally coded scale, pole length 5 mm
- Easy adhesive mounting, self-assembly possible
- Reels up to 100 m available
- Linearity deviation up to ±35 μm
Ben
King
Inside Sales
Edward
Stuart
Product Manager Business Unit MagLine
Technical drawing
Technical Specifications
Mechanical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Material
rustproof stainless steel

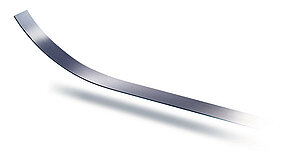

cover strip
Band width
5
mm
,
10
mm
Band thickness
1.4
mm
without cover strip
Mounting type
adhesive connection
double-sided tape premounted
Accuracy class
35
µm
,
50
µm
Dimensions
|
Reference points [m] |
|
|
Fixed distance X |
0.05 |
|
Periodic P |
0.2, 0.3, 0.5 |
|
Onetime E |
0.05, 0.1, 0.2, 0.5, 1, 2 |
Feature
Technical Specifications
Enhancement
Pole length
5
mm
Linearity deviation
±35
µm
at TU = 20° C
±50
µm
at TU = 20° C
Measuring range
∞
Feature
Technical Specifications
Enhancement
Ambient temperature
-20 … 70 °C
Storage temperature
-40 … 70 °C
Expansion coefficient
(11 ±1) x 10-6/K
spring steel
(16 ±1) x 10-6/K
stainless steel
Relative humidity
100
%
condensation admissible
Purchase order
Ordering information
The necessary tape length is calculated from:
Measured distance + sensor length "S" + (2 x forerun or overrun "B", resp.).
Measured distance + sensor length "S" + (2 x forerun or overrun "B", resp.).
|
S |
see the drawing of the sensor used |
|
B |
10 mm (forerun and overrun) |
|
1 |
7 |
Symbolic representation
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
length
000.10
000.10
100.00 m, in intervals of 0.1 m
"ordering detail, see ""Ordering information"""
tapewidth
10/10
Accuracy class
50
material carrier tape
St
adhesive carrier tape
TM
cover strip
AM
stainless steel
masking tape width
10.0
reference point
O
at width 10 mm optional with flexible reference mark, see accessories
only with 10 mm width
only with 10 mm width
reference point position
0.05
in m
indicate only if reference point E is chosen, ≤5.0 m
reference point position
0.2
in m
indicate only if reference point P is chosen

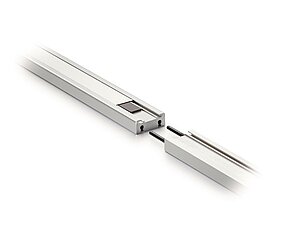

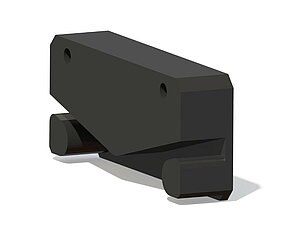

Accessories
Scope of delivery
- MB500/1
