Electronic position indicator DE10P
Freely programmable
The DE10P position indicator is a freely programmable and battery-powered position indicator. The DE10P position indicator provides maximum flexibility, since the always same basic device can be parameterized to the desired spindle pitch, display accuracy and reading position in an application-specific manner. The parameterization is performed directly on the device using operating keys.
- Freely programmable directly via buttons on the device
- Hollow shaft, max. Ø 30 mm
- Stainless-steel hollow shaft
- LCD display with 6 digits and special characters
- Digit height approx. 11 mm
- Long battery life
- Easily replaceable batteries (standard AAA)
- Incremental measurement function, absolute value display
- High protection class
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.13
kg
shaft
stainless steel (supported in friction bearings)
(≤ ø30H7)
Housing
plastic
Speed
≤600
min-1
(100% duty cycle)
Feature
Technical Specifications
Enhancement
Operating voltage
2x 1.5 V DC, >1000 mAh
2x AAA batteries, ~2-year service life
integrated battery compartment
replaceable by customer
Display/display range
6-digit LCD 7-segment, ~11 mm height
-99999 … 999999
Feature
Technical Specifications
Enhancement
System accuracy
±0.25
°
Feature
Technical Specifications
Enhancement
Ambient temperature
-10 … 60 °C
Storage temperature
-30 … 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP51, IP65
EN 60529
Shock resistance
300 m/s2, 15 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6
200 m/s2, 100 … 2 kHz
EN 60068-2-6
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
hollow shaft/
diameter
30

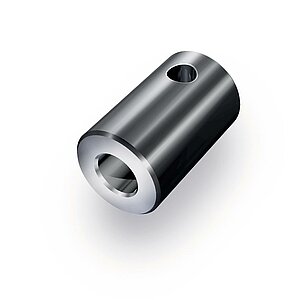

reducing bushes
Color
O
Protection category
IP51
Scope of delivery
- DE10P
- Installation Instructions
