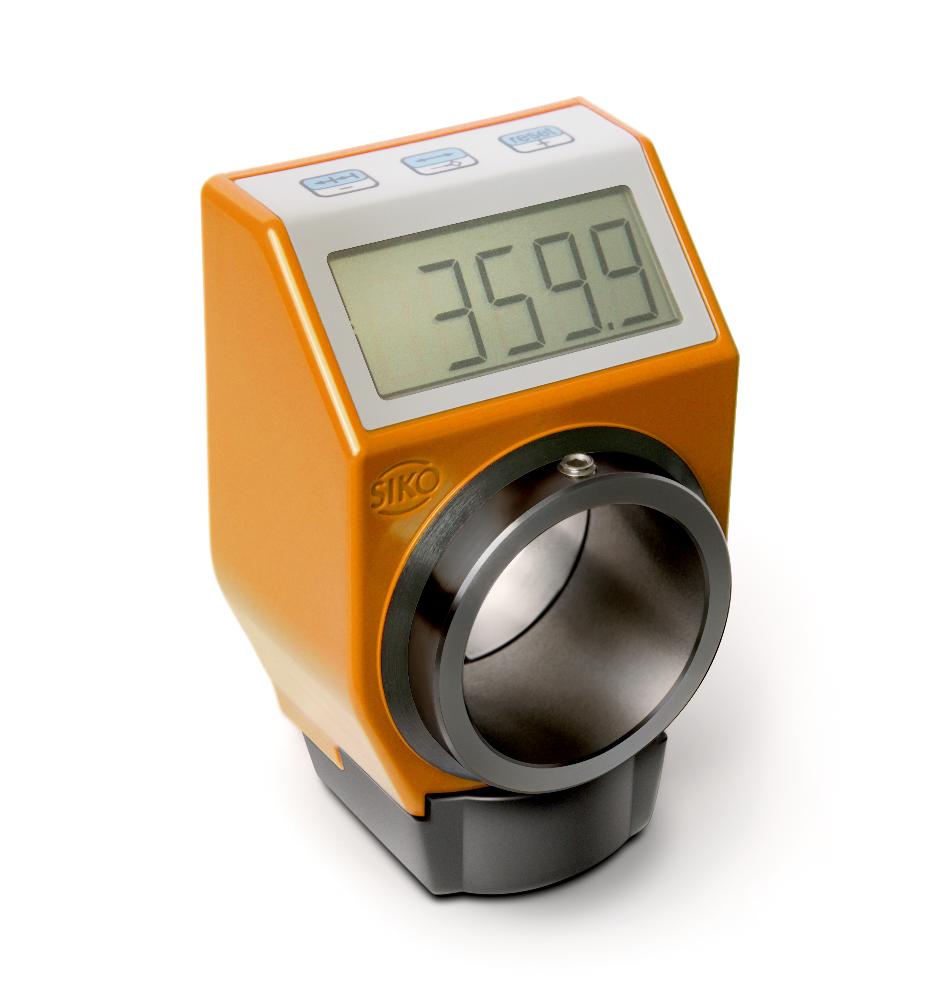

Electronic position indicator DE10
For large shaft diameters
The DE10 is a freely programmable and battery-powered position indicator. The position indicator DE04 provides maximum flexibility, since the always same basic device can be parameterized to the desired spindle pitch, display accuracy and reading position in an application-specific manner. Parameterization is conveniently performed via programming software via an external interface.
- Freely programmable electronic digital display for length or angular measurement

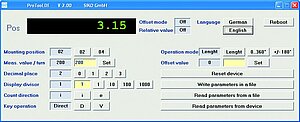

- Freely programmable via the ProToolDE programming software
- Hollow shaft, max. Ø 30 mm
- LCD display with 5 digits and special characters
- Digit height approx. 12 mm
- Reset, incremental measurement, offset via keyboard
- Long battery life
- Easy battery change without dismantling of the device
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Electrical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.1
kg
shaft
Burnished steel (plain bearing)
(≤ ø30H7)
Housing
plastic
Speed
≤600
min-1
(100% duty cycle)
Feature
Technical Specifications
Enhancement
Battery
lithium coin cell, 3 V, CR2032 type
~2-year service life
lithium coin cell, 3 V, CR2477 type
~8-year service life
Display/display range
5-digit LCD 7-segment, ~8 mm height
-19999 … 99999
Feature
Technical Specifications
Enhancement
Ambient temperature
-10 … 60 °C
Storage temperature
-30 … 80 °C
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP51
EN 60529
Shock resistance
300 m/s2, 15 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6
200 m/s2, 100 … 2 kHz
EN 60068-2-6
Purchase order
Ordering information
Note: Highlights in orange are order features.
Note
Please note that the value displayed (=measured value per revolution / display divisor) must be at least 2!
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Mounting position *
02
Measured value per revolution *
00002
00002
90000
"only with comma position ""1"""
"only with comma position ""1"""
decimal place *
0
Display divisor *
1
see calculation of displayed value
Counting direction *
i
key pad operation
D
hollow shaft/
diameter
30

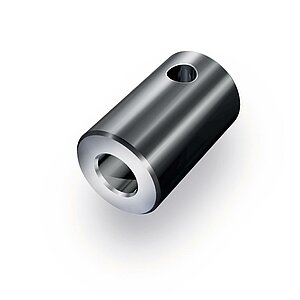

reducing bushes
Color
O
Battery
B2
observe technical drawing

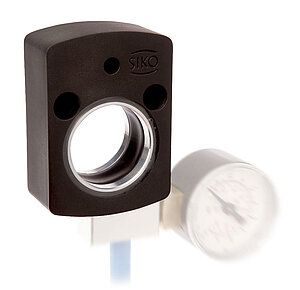

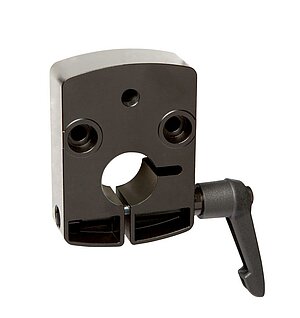

Accessories
Comparable products
Scope of delivery
- DE10
- Installation Instructions
