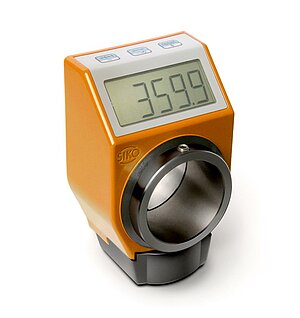

Digital position indicator DA10
For large shaft diameters
- Designed for large diameters
- Hollow shaft, max. Ø 30 mm
- Counter with 5 decades and fine reading
- Display can be designed for “mm” or “inch”
- Magnifying function for good readability
- Stainless-steel driving shaft as an option
- Axial seal, dustproof and splash-proof
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
0.1
kg
Housing
reinforced plastic
Sight window
plastic
mineral glass as an option
Counter
5
Decades with fine reading
Digit height
~7
mm
max. speed
|
Display (after 1st revolution) |
max. speed [rpm] |
|
00010 |
500 (1500) |
|
00015 |
500 (1000) |
|
00020 |
500 (750) |
|
00025 |
500 (600) |
|
00030 |
500 |
|
00040 |
375 |
|
00050 |
300 |
|
00060 |
250 |
|
00080 |
180 |
|
00100 |
150 |
Note
Speeds >500 rpm must only be run for short periods.
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 80 °C
Purchase order
Ordering information
Note: Highlights in orange are order features.
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Mounting position
12
see the icons illustrating the mounting positions
indication after 1st revolution
6/5
/5 = arithmetical value not displayed
decimal place
0
Counting direction
i
hollow shaft/
diameter
30
stainless steel

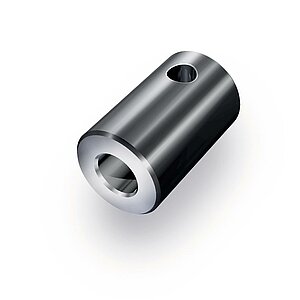

reducing bushes
hollow shaft/
design
WK
"not with hollow shaft/diameter ""25"""
"only with hollow shaft/diameter ""25"""
torque pin/
position
I
Color
O
axial seal
OAD
Scope of delivery
- DA10
