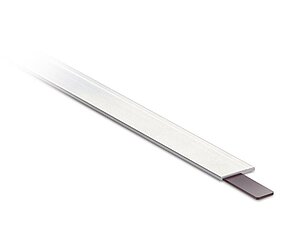

Magnetic tape MB400
Incrementally coded scale, 4 mm pole length
- Easy adhesive mounting, self-assembly possible
- Reels up to 100 m available
Ben
King
Inside Sales
Edward
Stuart
Product Manager Business Unit MagLine
Technical drawing
Technical Specifications
Mechanical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Material
rustproof stainless steel
cover strip
Band width
5
mm
,
10
mm
Band thickness
1.4
mm
without cover strip
Mounting type
adhesive connection
double-sided tape premounted
Feature
Technical Specifications
Enhancement
Pole length
4
mm
Measuring range
∞
Feature
Technical Specifications
Enhancement
Ambient temperature
-20 … 70 °C
Storage temperature
-40 … 70 °C
Expansion coefficient
(11 ±1) x 10-6/K
spring steel
(16 ±1) x 10-6/K
stainless steel
Relative humidity
100
%
condensation admissible
Purchase order
Ordering information
The necessary tape length is calculated from:
Measured distance + sensor length "S" + (2 x forerun or overrun "B", resp.).
Measured distance + sensor length "S" + (2 x forerun or overrun "B", resp.).
|
S |
see the drawing of the sensor used |
|
B |
50 mm (forerun and overrun) |
|
1 |
7 |
Symbolic representation
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
tapewidth
10
material carrier tape
St
length
00.10
00.10
100.0 m, in intervals of 0.1 m
"ordering detail, see ""Ordering information"""
adhesive carrier tape
TM
cover strip
AM

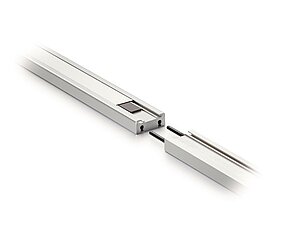

Accessories
Scope of delivery
- MB400
