Magnetic sensor MSK320R

Incremental, redundant signal outputs, scaling factor selectable
SIKO Global, Magnetic sensor MSK320R
SIKO Global, Magnetic sensor MSK320R
The MSK320R contains two sensor elements and two signal conditioners, therefore providing two independent output signals A1. A2. B1 and B2 as well as the associated inverted signals /A1. /A2 /B1 and /B2.
  • Enhanced safety owing to independent output channels
  • 2 magnetic sensors and 2 signal conditioners in one sensor head
  • Works with MB320/1 magnetic tape, MRI01 or MR320 magnetic ring, MBR320 magnetic tape ring
  • Reading distance ≤2 mm
  • Repeat accuracy ±1 increment
  • extensive application temperature range of  -40 … 85° C
  • Cost advantage by installation of one MSK320R sensor instead of two MSK320 sensors
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Edward Stuart
Edward Stuart
Product Manager Business Unit MagLine
+1 734 426-3476 edward.stuart(at)siko-global.com
Watch expert video
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • System components
  • Purchase order
  • Downloads
  • Comparable products

Technical drawing

SIKO Global, Magnetic sensor MSK320R

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Housing
zinc die-cast
ZM design
Sensor/band reading distance
0.1 … 2 mm
O reference signals
Sensor/ring reading distance
0.1 … 2 mm
O reference signals
Cable sheath
PUR, suitable for drag-chain use
10-core,  ø4.8 ±0.15 mm
Feature
Technical Specifications
Enhancement
Operating voltage
4.5 … 30 V DC
reverse polarity protection
Current consumption
<20 mA at 24 V DC
unloaded
<75 mA
loaded
Output circuit
PP, LD (RS422)
PP only with 4.5 … 30 V DC and LD only with 4.5 … 6 V DC
Output signals
A1, /A1, B1, B/1, A2, /A2, B2, /B2
quadrature signal
Output signal level high
>UB -2.5 V
PP
>2.5 V
LD
Output signal level low
<0.8 V
PP
<0.5 V
LD
Pulse width of reference signal
1 Increment(s)
Real-time requirement
speed-proportional signal output
Type of connection
open cable end

Signal image

Note

The logic state of signals A1/B1 relating to signals A2/B2 is not defined. The phasing A1/B1 and A2/B2 may deviate from the signal pattern.

Feature
Technical Specifications
Enhancement
Resolution
0.0125 mm
each channel configurable
0.025 mm
0.05 mm
0.1 mm
0.2 mm
0.4 mm
0.8 mm
Scaling factor
1   , 2 , 4 , 8 , 16 , 32 , 64
each channel configurable
Linearity deviation
±30 µm at TU = 20° C
1 mm sensor/strip reading distance
Repeat accuracy
±1 Increment(s)
Measuring range
∞
Circumferential speed
≤25 m/s
Travel speed
≤25 m/s
Feature
Technical Specifications
Enhancement
Ambient temperature
-40 … 85 °C
Storage temperature
-40 … 85 °C
Relative humidity
100 %
condensation admissible
EMC
EN 61326-1
immunity requirement of industrial applications, emission limit class B
Protection category
IP67
EN 60529
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6

More information

pin assignment

inverted

Signal
 Cable color
+UB
 brown
GND
 black
A1
 red
B1
 orange
/A1
 yellow
/B1
 green
A2
 blue
B2
 violet
/A2
 white
/B2
 gray

Hint for mounting

For systems with reference points on the magnetic ring please take care that sensor and ring are aligned correctly (see picture)
A, Sensor/ring reading distance
 ≤2 mm
B, Lateral offset
 ±2 mm
C, Alignment error
 ±3°
D, Longitudinal inclination
 ±1°
E, Lateral inclination
 ±3°
(Sensor representation symbolic)
(Sensor representation symbolic)

System components

SIKO Global, Magnetic sensor MSK320R
Magnetic sensor MSK320R
SIKO Global, Magnetic tape MB320/1
Magnetic tape MB320/1
SIKO Global, Magnetic ring MR320
Magnetic ring MR320
SIKO Global, Magnetic ring MRI01
Magnetic ring MRI01
SIKO Global, Magnetic band ring MBR320
Magnetic band ring MBR320

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Cable length

00,1

01.0

01.0 0.1 m
01.0 20.0 m, in intervals of 1 m
A voltage drop is to be expected with increasing cable length. This must be taken into account in the electrical design.

resolution linear/
scaling factor radial a1/
b1

0,0125/64

0.0125/64

0.0125/64
0.025/32
0.05/16
0.1/8
0.2/4
0.4/2
0.8/1
0

others on request

resolution linear/
scaling factor radial a2/
b2

0,0125/64

0.0125/64

0.0125/64
0.025/32
0.05/16
0.1/8
0.2/4
0.4/2
0.8/1
0

others on request

Your order key

MSK320R - E1 - 01.0 - I - O - 0.0125/64 - 0.0125/64
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

3D-CAD model

Link/URL

CAD-Modell

Installation Instructions

PDF

DE | EN

EU-conformity declarations

PDF

DE | EN

Comparable products

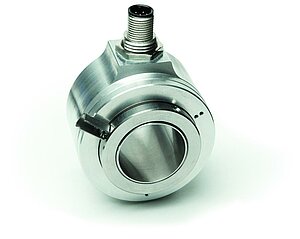

SIKO Global, Incremental encoder IH5815
Incremental encoder IH5815

  • Resolution max. 5000 pulses/revolution

  • Through hollow shaft up to max. ø15 mm

  • Robust bearing construction

Go to Product
SIKO Global, Incremental encoder IH5828
Incremental encoder IH5828

  • Resolution max. 5000 pulses/revolution

  • Through hollow shaft up to max. ø28 mm

  • M12 or cable connection

Go to Product

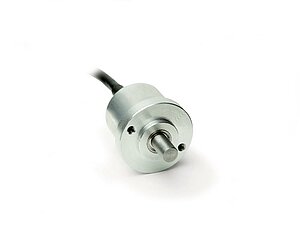

SIKO Global, Incremental encoder IV2800
Incremental encoder IV2800

  • Small design, Ø 28 mm

  • Resolutions of max. 1024 pulses/revolution

  • Robust bearing construction

Go to Product

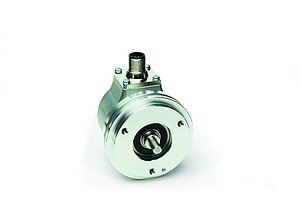

SIKO Global, Incremental encoder IV5800
