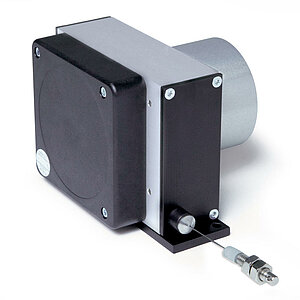

Draw-wire encoder SG42
robust design and redundant sensor system with 4000 mm measuring length
Wire-actuated encoder with redundant acquisition of linear measurement distances with a max. measuring length of4000 mm.
- Robust design
- Measuring lengths up to 4000 mm
- Analogue signal output in redundant design (2x 4…20 mA or potentiometer)
- Variable mounting options
- Lockable vent and water drain holes
- Very robust measuring rope (stainless steel)
- IP65 protection class
- M12 plug connection
Ben
King
Inside Sales
August
Meyers
Manager Business Unit Mobile Automation
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.79
kg
Housing
aluminum/plastic
Wire design
ø0.87
mm
rustproof stainless steel, plastic-coated
Extension force
≥8
N
Measured distance/ rope drum revolution
200
mm
Absolute accuracy
±0.35
%
relating to measuring length (mm)
Geber Potentiometer
Feature
Technical Specifications
Enhancement
Operating voltage
≤30
V DC
power loss on the potentiometer <1 W
Power rating
2
W
at 70 °C
resistance
10
kΩ
5
kΩ
Resistance tolerance
±5
%
Standard terminal resistance
0.5 % or 1 Ω
the higher value always applies
Linearity tolerance
±0.25
%
Type of connection
M12 plug connector (A-coded)
8-pole, 1x pin
Messwandler, Stromausgang
Feature
Technical Specifications
Enhancement
Operating voltage
10 … 30 V DC
between I+ and I-, at ≤500 Ω load
Output current
4 … 20 mA
(2x)
4/20mA 4/20mA
20 … 4 mA
(2x)
20/4mA 20/4mA
4 … 20 mA, 20 … 4 mA
4/20mA 20/4mA
Type of connection
M12 plug connector (A-coded)
8-pole, 1x pin
* Transducers enable optimal adaptation of output current or output voltage to the measuring range. The measuring transformer is factory preset so that an output signal of 4 … 20 mA or 20 … 4 mA is available between the start and end points of the measuring range.
Feature
Technical Specifications
Enhancement
Repeat accuracy
±0.25
mm
per direction of approach
Travel speed
≤800
mm/s
Failure rate
166.7
Year(s)
at 60 °C (MTBF)
Feature
Technical Specifications
Enhancement
Ambient temperature
-40 … 80 °C
Protection category
IP65 (for electronic unit)
EN 60529, certonally coated electronics
More information
pin assignment
Potentiometer pin assignment
|
Signal |
PIN |
Additional information |
|
Po |
1 |
Potentiometer 1 |
|
Po |
2 |
Potentiometer 2 |
|
S |
3 |
Potentiometer 2 |
|
Pe |
4 |
Potentiometer 2 |
|
nc |
5 |
|
|
Pe |
6 |
Potentiometer 1 |
|
S |
7 |
Potentiometer 1 |
|
nc |
8 |
Connection assignment of transducer
|
Signal |
Additional information |
|
|
I+ |
1 |
Transducer 1 |
|
I+ |
2 |
Transducer 2 |
|
nc |
3 |
|
|
I- |
4 |
Transducer 2 |
|
nc |
5 |
|
|
I- |
6 |
Transducer 1 |
|
nc |
7 |
|
|
nc |
8 |
Hint for mounting
When securing the wire it must be ensured that the wire is straight and vertical in relation to the wire outlet. Recommendation: Only select the starting position after an unwound length of approx. 5 mm. This prevents the wire hitting the end stop when it is rewound.
Symbolic representation
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Measuring range
3300
in mm
encoder type
P10_P10
position of electrical connection
1
series impedance
0
only for P10_10 encoder type
only for P10_10 encoder type
Accessories
Scope of delivery
- SG42
- Installation Instructions
