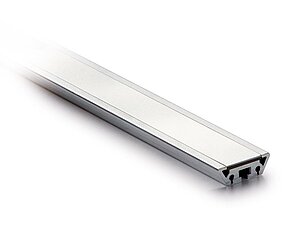

Magnetic tape MBA501
Absolutely coded scale, measuring length 10 m
- Easy adhesive mounting, self-assembly possible
- Available lengths up to 75 m
Technical drawing
Technical Specifications
Purchase order
Ordering information
The necessary tape length is calculated from:Measured distance + sensor length "S" + (2 x forerun or overrun "B", resp.).
|
S |
see the drawing of the sensor used |
|
B |
5 mm (forerun and overrun) |
|
1 |
7 |
Product configuration
Feature
Select specifications
Enhancement
length
00.20
adhesive carrier tape
TM
cover strip
AM
Scope of delivery
- MBA501
