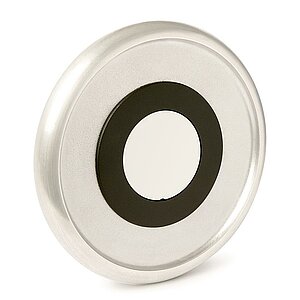

Handwheel HG5
Turning handle made of plastic
- Low-cost and compact turning handle made of glass-fiber reinforced plastic
- Various sizes
- Surface with rounded edges avoids accumulation of dirt
- Hub made of plastic or metal
- Various hub versions
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Feature
Technical Specifications
Enhancement
Weight
0.1
kg
Material
plastic
Dimensions
|
Hub |
øD |
ødv |
ødx |
ød1 |
ød2 |
ød3 |
a |
b |
c |
e |
f |
h |
Suitable for |
|
plastic |
63 |
6 … 12 |
13 |
21 |
58 |
49 |
28.9 |
14.3 |
19.2 |
17.2 |
14.3 |
S50/1 |
|
|
metal |
63 |
5.8 |
6 … 14 |
18 |
26 |
58 |
52 |
28.9 |
13.3 |
22.2 |
14.3 |
17.3 |
S50/1 |
|
3 |
2 |
2 |
3 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
ødv = d pre-drilled
special processing
|
Handwheel type |
HG5 |
|||
|
Bore dH7 |
6, 8 |
9,10 |
12 |
14* |
|
Groove width with keyway JS9 |
3 |
4 |
5 |
|
|
Pin hole |
3.8/10 |
3.8/10 |
3.8/10 |
4.8/10* |
|
Hub thread without keyway JS9 |
M4/10 |
M4/10 |
M4/10* |
M6/10* |
|
Hub thread with keyway JS9 |
M3/10 |
M3/10 |
M3/10 |
|
|
3 |
2 |
2 |
2 |
2 |
* Only possible with a metal hub; highlights in orange are order features.
Highlights in orange are order features.
Highlights in orange are order features.
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
hub material
A
Bore diameter
5.8
6
16 mm, in steps of 1 mm
see Table of dimensions, maximum value ødx
feather key groove
OP
"according to DIN 6885/1 T1, only with hub material ""VA"" or ""A"""
"according to DIN 6885/1 T1, only with hub material ""VA"" or ""A"""
Pinhole
OS
see Table of dimensions; value GfG
hub thread
ONG
"see table Special processing, depending on the handwheel type, only if pin hole is ""OS"", only with hub material ""VA"" or ""A"""
tapered hub
OAN

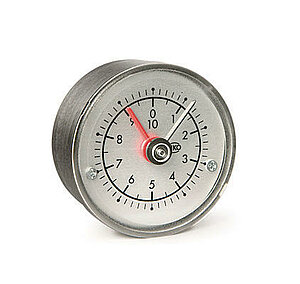

position indicator
PM
separate ordering of a position indicator required!
separate ordering of a position indicator required!
Scope of delivery
- HG5
