Handwheel KHB9
Made of fiber-glass reinforced plastic
- Robust and economic plastic handwheel
- Hub made of zinc-coated steel for high stability and easy shaft mounting
- Various hub versions

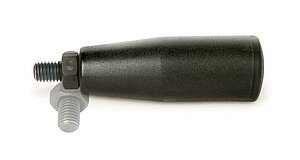

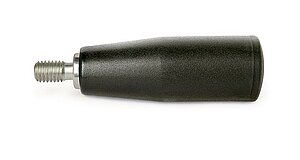

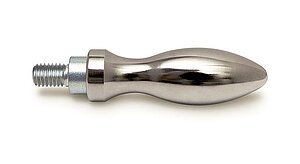

- With thread for mounting a turning handle (see accessories)
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Feature
Technical Specifications
Enhancement
Weight
0.16
kg
KHB9
Material
plastic
hub of hot-dip steel
Dimensions
|
øD |
ødv |
ødx |
ød1 |
ød2 |
a |
b |
c |
e |
GfG |
Suitable for |
|
87 |
5.8 |
16 |
32 |
63 |
54 |
17 |
21 |
20 |
M6 |

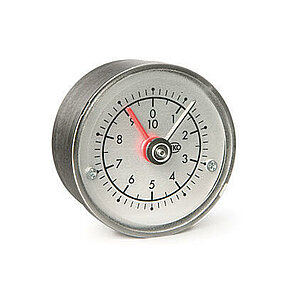

S50/1 |
|
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
ødv = d pre-drilled; ødv = d max.; GfG = thread for handle
special processing
|
Handwheel type |
KHB9 |
||||
|
Bore dH7 |
6 … 8 |
9, 10 |
11, 12 |
13, 14 |
15, 16 |
|
Groove width with keyway JS9 |
3 |
4 |
|||
|
Pin hole |
3.8/8 |
3.8/8 |
3.8/8 |
4.8/8 |
|
|
Hub thread without keyway JS9 |
M4/8 |
M4/8 |
M4/8 |
M6/8 |
|
|
Hub thread with keyway JS9 |
M3/8 |
M3/8 |
|||
|
4 |
1 |
1 |
1 |
1 |
1 |
Highlights in orange are order features.
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Bore diameter
5.8
06
16 mm, in steps of 1 mm
see Table of dimensions, maximum value ødx
feather key groove
OP
according to DIN 6885/1 T1
Pinhole
OS
see Table of dimensions; value GfG
hub thread
ONG
"see table Special processing, depending on the handwheel type, only if pin hole is ""OS"""
position indicator
PM
separate ordering of a position indicator required!
separate ordering of a position indicator required!
tapered hub
OAN
Accessories
Scope of delivery
- KHB9
