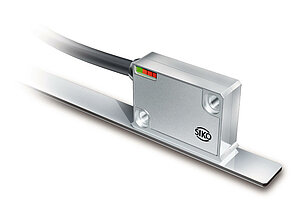

Magnetic sensor LS100
Incremental, miniature design, analog interface 1 V<sub>SS</sub>
- Repeat accuracy max. ±1 μm
- Output circuit sin/cos 1 VSS
- Signal period 1000 μm (analog)
- Real-time signal processing
- Works with MB100/1 magnetic tape
Ben
King
Inside Sales
Edward
Stuart
Product Manager Business Unit MagLine
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Housing
aluminum blue
Sensor/band reading distance
0.1 … 0.4 mm
over the wohle measuring range, without masking tape
Cable sheath
PUR
6-core ø5.1-0.2 mm
Feature
Technical Specifications
Enhancement
Operating voltage
5 V DC ±5 %
no reverse polarity protection
Current consumption
≤30
mA
unloaded
Output signals
sin, /sin, cos, /cos
Output voltage
1 VPP ±10 %
with RA = 120 Ohm until 1 kOhm at 0 … 20 °C
Output impedance
>75
Ω
RLoad
Signal period
1000
µm
Offset voltage
2.5 V ±0.5 %
Phasing
90°±1°, ±3° (20 kHz)
Real-time requirement
speed-proportional signal output
Type of connection
D-SUB
15-pole, 1x socket
Signal image
E: Reference voltage 2.5
F: 1 VSS ±10%
Ratio G to H: Offset ±10 mV
M: 90° ±1.0° / ±3° (25 kHz)
F: 1 VSS ±10%
Ratio G to H: Offset ±10 mV
M: 90° ±1.0° / ±3° (25 kHz)
Feature
Technical Specifications
Enhancement
Linearity deviation
±2
µm
at TU = 20° C
0.2 mm sensor/strip reading distance
Repeat accuracy
±1
µm
unidirectional
Measuring range
∞
Travel speed
≤20
m/s
Feature
Technical Specifications
Enhancement
Ambient temperature
-20 … 70 °C
sensor head
0 … 60 °C
connector
Storage temperature
-20 … 85 °C
sensor head
Relative humidity
100
%
condensation admissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP67
EN 60529
Shock resistance
2000 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
200 m/s2, 50 Hz … 2 kHz
EN 60068-2-6
More information
pin assignment
|
Signal |
PIN |
|
nc |
1 |
|
GND (OV) |
2 |
|
nc |
3 |
|
nc |
4 |
|
/B (cos) |
5 |
|
B (cos+) |
6 |
|
"A (sin+) " |
7 |
|
/A (sin) |
8 |
|
nc |
9 |
|
GND (OV) |
10 |
|
nc |
11 |
|
+UB |
12 |
|
nc |
13 |
|
GND (OV) |
14 |
|
nc |
15 |
Hint for mounting
|
A, Sensor/tape reading distance |
≤0.4 mm |
|
B, Lateral offset |
±2 mm |
|
C, Alignment error |
±3° |
|
D, Longitudinal inclination |
±1° |
|
E, Lateral inclination |
±3° |
|
5 |
2 |
Note
The length of the cable between the sensor and connector cannot be subsequently increased or decreased.
Symbolic representation
System components
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Operating voltage
5
Cable length
01.0
01.0
20.0 m, in intervals of 1 m
Scope of delivery
- LS100
- Fastening set
- Installation Instructions
- Distance gage
