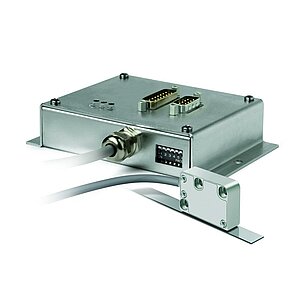

Translation module ASA510H
Quasi-absolute, battery-buffered translation module
- Repeat accuracy ±0.005 mm
- SSI or RS485 interface
- Scale MB500/1
- Reading distance ≤2 mm
- Compact, absolutely measuring unit with hard-wired sensor
- Max. measuring length ±655 m (RS485)
- Maintenance-free backup battery
- Option: digital LD interface
- Option: analog 1 VPP or 2.2 VPP interfaces (5 mm period length)
Ben
King
Inside Sales
Edward
Stuart
Product Manager Business Unit MagLine
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Housing
steel sheet
electrogalvanized
zinc die-cast
sensor
Cable length
≤6
m
Cable sheath
PVC suitable for drag-chain use
≥1.000.000 with bending radius = 8x cable diameter and 20 °C
Travel speed
|
Travel speed Vmax [m/s] |
||||||
|
Resolution [µm] |
1 |
4.00 |
1.60 |
0.72 |
0.32 |
0.12 |
|
5 |
8.00 |
8.00 |
3.60 |
1.60 |
0.62 |
|
|
10 |
8.00 |
8.00 |
7.20 |
3.20 |
1.25 |
|
|
12.5 |
8.00 |
8.00 |
8.00 |
4.00 |
1.60 |
|
|
Pulse interval [μs] |
0.2 |
0.5 |
1.1 |
2.5 |
6.3 |
|
|
Counting frequency [kHz] |
1250.00 |
500.00 |
230.00 |
100.00 |
40.00 |
|
|
6 |
2 |
3 |
3 |
3 |
3 |
3 |
Note
The internal translation module can generate fast counting pulses, the lengths of wich are limited by the pulse interval. The downstream electronics must be adjusted accordingly. Select the pulse interval in advance, if necessary.
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
reverse polarity protection
Current consumption
<150
mA
Battery service life
10
Year(s)
at TU = 20° C
according to manufacturer specification
Feature
Technical Specifications
Enhancement
Resolution
5
µm
,
10
SSI, selectable via DIP switch
System accuracy
±(0.025 + 0.01 x L) mm, L in m
at TU = 20° C
L = length per meter or part thereof
Repeat accuracy
±1
Increment(s)
(5 µm / 10 µm)
Measuring range
±655000
mm
Travel speed
≤5
m/s
SSI absolute value
≤8
m/s
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 60 °C
Storage temperature
-20 … 70 °C
Relative humidity
≤95
%
translation module, condensation inadmissible
≤100
%
sensor, condensation admissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP20
EN 60529 (translation module)
IP67
EN 60529 (sensor)
More information
pin assignment
X1 plug
|
SSI |
PIN |
|
nc |
1 |
|
nc |
2 |
|
+24 V DC |
3 |
|
0 V |
4 |
|
nc |
5 |
|
nc |
6 |
|
SSI_DATA |
7 |
|
/SSI_DATA |
8 |
|
nc |
9 |
|
nc |
10 |
|
nc |
11 |
|
SSI_GND |
12 |
|
nc |
13 |
|
SSI_CLK |
14 |
|
/SSI_CLK |
15 |
X2 plug
|
RS485 |
RS485 + LD |
PIN |
|
nc |
A |
1 |
|
nc |
B |
2 |
|
nc |
nc |
3 |
|
+24 V DC |
+24 V DC |
4 |
|
0 V |
0 V |
5 |
|
nc |
/A |
6 |
|
nc |
/B |
7 |
|
DÜA |
DÜA |
8 |
|
DÜB |
DÜB |
9 |
X3 plug
|
≤ 1 VSS |
PIN |
|
sin |
1 |
|
/sin |
2 |
|
cos |
3 |
|
nc |
4 |
|
nc |
5 |
|
nc |
6 |
|
ANA_GND |
7 |
|
/cos |
8 |
|
nc |
9 |
Hint for mounting
|
A, Sensor/tape reading distance |
≤2 mm |
|
B, Lateral offset |
±1 mm |
|
C, Alignment error |
±3° |
|
D, Longitudinal inclination |
±2° |
|
E, Lateral inclination |
±2° |
Symbolic representation
System components
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Cable length
01.0
01.0
06.0 m, in intervals of 1 m
digital interface
LD
digital resolution
1
in µm
Pulse interval
0.2
in µs
Analog interface
1Vss
Scope of delivery
- ASA510H
- Grounding material
- User information
- Sensor fastening set
