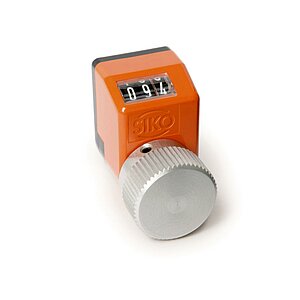

Digital position indicator DA02
Very small design
- Ultra-small design
- Hollow shaft with max. Ø of 10 mm
- Minimum axle base of 19 mm
- Counter can be designed for “mm” or “inch”
- Stainless-steel driving shaft as an option
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
0.02
kg
Housing
reinforced plastic
Counter
3
Decades
Digit height
~4
mm
max. speed
|
Display (after 1st revolution) |
max. speed [rpm] |
|
010 |
500 (1500) |
|
015 |
500 (1000) |
|
020 |
500 (750) |
|
025 |
500 (600) |
|
030 |
500 |
|
040 |
375 |
|
050 |
300 |
|
060 |
250 |
|
080 |
180 |
|
100 |
150 |
Note
Speeds >500 rpm must only be run for short periods.
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 80 °C
Purchase order
Ordering information
Note: Highlights in orange are order features.
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Mounting position
02
indication after 1st revolution
7/5
/5 = arithmetical value not displayed
decimal place
0
Counting direction
i
hollow shaft/
diameter
10
stainless steel

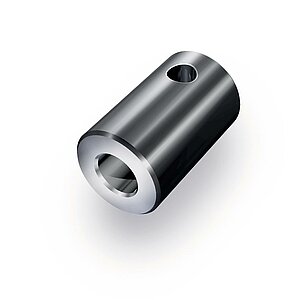

reducing bushes
Color
O
Scope of delivery
- DA02
