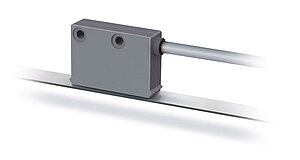

Magnetic sensor MSK2000
Compact sensor, incremental, digital interface, resolution 0.25 mm
- Linear resolution 0.25 mm
- Repeat accuracy ±1 increment
- Operating voltage 5 or 24 V
- Works with magnetic tape MB2000
- Reading distance ≤10 mm
Ben
King
Inside Sales
Edward
Stuart
Product Manager Business Unit MagLine
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Housing
light green plastic
Sensor/band reading distance
1 … 10 mm
Cable sheath
PUR, suitable for drag-chain use
4-core ø 4.4-0.4 mm; 6, 8-core ø 5-0.4 mm
Cable bending radius
5x cable diameter
static
7.5x cable diameter
dynamic
Service life of cable
>5
Million cycles
Under the following test conditions:
Feature
Technical Specifications
Enhancement
Operating voltage
10 … 30 V DC
reverse polarity protection
5 V DC ±5 %
no reverse polarity protection
Current consumption
<50
mA
PP, unloaded
<25
mA
LD
Output circuit
PP, LD (RS422)
Output signals
A, /A, B, /B, I, /I
90° off-phase
Output signal level high
UB - 2.5 V
PP
RS422 specific
LD
Output signal level low
<0.8
V
PP
RS422 specific
LD
Latency
1.5
µs
Pulse width of reference signal
1
Increment(s)
Real-time requirement
speed-proportional signal output
Type of connection
open cable end
plug connector
7/8-pole
Signal patterns
Note
The logical condition of signals A and B is not defined in reference to the index signal I or the reference signal R. It can deviate from the signal form.
Feature
Technical Specifications
Enhancement
Resolution
0.25
mm
,
1
mm
System accuracy
±(1 + 0.03 x L) mm, L in m
at TU = 20° C
Repeat accuracy
±1
Increment(s)
Measuring range
∞
Travel speed
≤25
m/s
Feature
Technical Specifications
Enhancement
Ambient temperature
-10 … 70 °C
Storage temperature
-30 … 80 °C
Relative humidity
100
%
condensation admissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP67
EN 60529
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6
More information
pin assignment
not inverted
|
Signal |
E1 |
E6X |
|
GND |
black |
1 |
|
+UB |
brown |
2 |
|
A |
red |
3 |
|
B |
orange |
4 |
|
nc |
5 |
|
|
nc |
6 |
|
|
nc |
7 |
inverted
|
Signal |
E1 |
E6X |
|
A |
red |
1 |
|
B |
orange |
2 |
|
nc |
3 |
|
|
+UB |
brown |
4 |
|
GND |
black |
5 |
|
/A |
yellow |
6 |
|
/B |
green |
7 |
Inverted with reference signal
|
Signal |
E1 |
E6X |
|
A |
red |
1 |
|
B |
orange |
2 |
|
I |
blue |
3 |
|
+UB |
brown |
4 |
|
GND |
black |
5 |
|
/A |
yellow |
6 |
|
/B |
green |
7 |
|
/I |
violet |
8 |
Hint for mounting
|
A, Sensor/tape reading distance |
≤10 mm |
|
B, Lateral offset |
±2 mm (10 mm tape) ±5 mm (20 mm tape) |
|
C, Alignment error |
±3° |
|
D, Longitudinal inclination |
±3° |
|
E, Lateral inclination |
±3° |
Symbolic representation
System components
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Operating voltage
4
A voltage drop is to be expected with increasing cable length. This must be taken into account in the electrical design.
Type of connection
E1
Cable length
01.0
01.0
20 m, in intervals of 1 m
Output circuit
PP
only with operating voltage 4
output signal
NI
only with output circuit PP
reference signal
O
Resolution
0.25
in mm
Scope of delivery
- MSK2000
- Fastening set
- Installation Instructions
