Setpoint display AP10T

with bus interface, for format part or tool change
SIKO Global, Setpoint display AP10T
SIKO Global, Setpoint display AP10T
SIKO Global, Setpoint display AP10T
SIKO Global, Setpoint display AP10T
Setpoint display with communication interface visualizes instructions for the operator during product change or format changes. Readability is optimized for intuitive user prompting: The red/green LEDs indicate whether a format part change is required. With the help of the backlit display, designations or setpoint and actual value can be clearly displayed. The operator confirms the changeover using an acknowledgment button. This means that faulty machine settings with the setpoint display AP10T can be avoided in the future, making flexible production machines more process-reliable.
  • Setpoint display with bus interface without measurement of actual value
  • Large control key to confirm target value
  • Optimally readable backlit display
  • Two-line LCD-Display
  • Integrated RS485 interface, CAN bus as an option
  • User guidance via bicolor status LEDs
  • IP53 protection class, IP65 as an option
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Cary Mulvany
Cary Mulvany
Manager Business Unit Changeover Solutions
+1 734 426-3476 cary.mulvany(at)siko-global.com
Watch expert video
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Setpoint display AP10T

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.09 kg
Housing
reinforced plastic
plug thread, nickel-plated brass/cover, metal ground connection
Color
black, RAL 9005
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Current consumption
~30 mA
when operated with LEDs additionally ~3 mA per LED
Power input
~0.72 VA
max. power supply of the power supply unit used: 100 VA. The power supply used corresponds to SELV/Limited Energy (IEC 61010-1) or SELV/LPS (IEC 60950-1) or Class 2 (UL 1310).
Parameter storage
105 cycles
also applies to calibration operations
Display/display range
6-digit LCD 14-segment, ~8 mm high
decimal points, 2 rows, (backlit LED red/white)
Status display
2x two-color LED (red/green)
acknowledgment status, configurable
Keys
acknowledgment, parameterization
Bus connection
RS485, CANopen
no galvanic isolation
Type of connection
2x M8 plug connectors (A-coded)
4-pole, 1x socket, 1x pin
grounding via flat male tab 6.3 mm or terminal lug
Feature
Technical Specifications
Enhancement
Approval
UL
UL 61010-1, File No. E503367
Feature
Technical Specifications
Enhancement
Ambient temperature
… 60 °C
Storage temperature
-20 … 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61326-1
Industry immunity requirement, class B emission limit, shielded line required
Safety regulations
DIN EN 61010-1 (VDE 0411-1), UL 61010-1
Limited power supply according to DIN EN 61010-1 Section 9.4.
Protection category
IP53
EN 60529, with mating connectors (degree of protection not tested by UL)
IP65
EN 60529, with mating connectors (degree of protection not tested by UL)
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6

More information

pin assignment

Interfaces

RS485
 CAN-Bus
 PIN
TxRx-/DÜB
 CANL
 1
TxRx+/DÜA
 CANH
 2
+24 V DC
 +24 V DC
 3
GND
 GND
 4

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

interface/
protocol

S3/09

S3/09

S3/09

RS485/SIKONETZ5

CAN

CANopen

Protection category

IP53

IP53

IP53

IP53

IP65

IP65

Sight window

SF

SF

SF

front foil

K

plastic

impact protection

Your order key

AP10T - S3/09 - IP53 - EX - SF - S
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

User manual

CANopen

PDF

DE
EN

SIKONETZ5

PDF

DE
EN

3D-CAD model

Link/URL

CAD-Modell

EU-conformity declarations

PDF

DE | EN | FR

Installation Instructions

PDF

DE | EN

Setup-Package

ZIP

Download

Certificate

UL

PDF

EN

CKCA conformity declarations

PDF

EN

Accessories

SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
SIKO Global, Cable extension KV04S1
Cable extension KV04S1

  • Ready-to-use cable connection

  • Cable lengths up to 10 m

  • Connection technology M8, 4-pole

Go to Product
Additional Accessories
Order key
Mating connector, 4-pole, socket
84209
Mating connector, 4-pole, pin
84210
Bus terminating connector, 4-pole, pin
BAS-0005

Comparable products

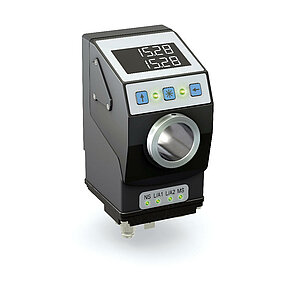

SIKO Global, Electronic position indicator AP05
Electronic position indicator AP05

  • Electronic position indicator with bus/data interface

  • Backlit two-row LCD

  • Display of target and actual value displays with integrated alignment

Go to Product

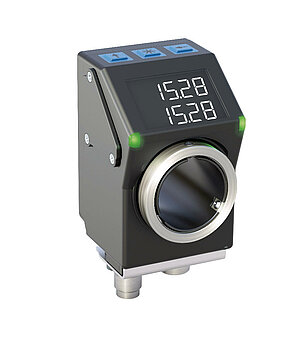

SIKO Global, Electronic position indicator AP10S
Electronic position indicator AP10S

  • Electronic position indicator with plug connection for magnetic sensor

  • Optimally readable backlit display

  • Two-line LCD for target and actual values

Go to Product

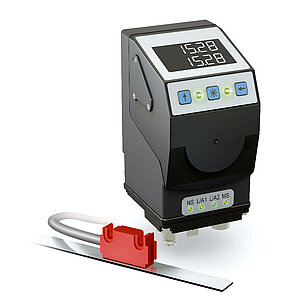

SIKO Global, Electronic position indicator AP20
Electronic position indicator AP20

  • Integrated Industrial-Ethernet-Fieldbus

  • Backlit two-row LCD

  • Display of target and actual value displays with integrated alignment

Go to Product

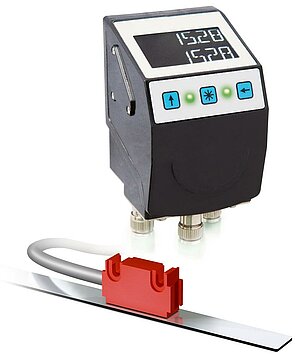

SIKO Global, Electronic position indicator AP20S
Electronic position indicator AP20S

  • Electronic position indicator with plug connection for magnetic sensor

  • Integrated Industrial-Ethernet-Fieldbus

  • Backlit two-row LCD

Go to Product

Scope of delivery

  • AP10T
  • Documentation on CD
  • Installation Instructions
