Easy touch control ETC5000
- Control system for position indicators and actuators
- Intuitive touchscreen control concept for format adjustment
- up to 31 devices can be actuated
- Single or set positioning
- RS485 and USB interfaces
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
1.3
kg
Housing
plastic
Feature
Technical Specifications
Enhancement
Operating voltage
11 … 36 V DC
Power input
12
W
Display/display range
LED, 7'', TFT touch screen
65536 colors
Feature
Technical Specifications
Enhancement
Resolution
800 x 480
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 50 °C
Storage temperature
-20 … 60 °C
Relative humidity
10 … 90 %
condensation inadmissible
Protection category
IP20 housing
EN 60529
IP65 on the front
EN 60529
Shock resistance
150 m/s2, 11 ms
Vibration resistance
98 m/s2, 9 … 150 Hz
X, Y & Z
More information
pin assignment
Operating voltage
|
Assignment |
Cable color |
|
+UB |
red |
|
GND |
black |
RS232, 9-pole D-SUB
|
Signal |
PIN |
|
DCD |
1 |
|
RD |
2 |
|
TD |
3 |
|
DTR |
4 |
|
SG |
5 |
|
DSR |
6 |
|
RTS |
7 |
|
CTS |
8 |
|
RI |
9 |

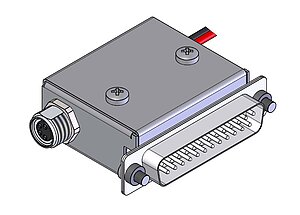

RS485, 25-pole D-SUB
|
Signal |
PIN |
|
GND |
1 |
|
Do not connect! |
2 … 6 |
|
GND |
7 |
|
Do not connect! |
8 |
|
nc |
9 … 11 |
|
DÜA |
12 |
|
DÜB |
13 |
|
Do not connect! |
14 … 20 |
|
+5 V Out (for level determination) |
21 |
|
Do not connect! |
22 … 25 |
System components
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Scope of delivery
- ETC5000
