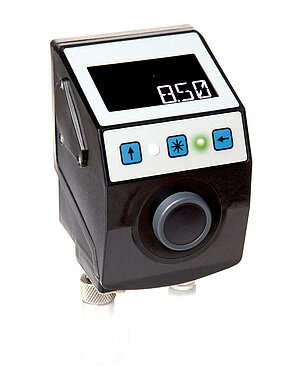

Electronic position indicator AP10

With interface

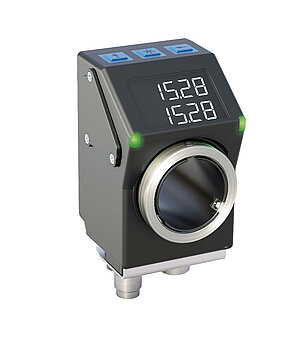

The AP10 position indicator with communication interface is used for monitored format adjustment to reduce setup times and increase machine efficiency. Readability is optimized for intuitive user prompting: The backlit display clearly shows the setpoint and actual value, and the two LEDs clearly indicate the direction in which the adjustment must be made. The IO link interface enables easy and reliable integration into modular machines.

Electronic position indicator with interface
Stainless-steel hollow shaft ø20 mm, up to ø25.4 mm as an option
Backlit display
Two-line LCD for target and actual values
Reset, incremental measurement, offset via keyboard
Integrated RS485 interface, CAN bus or IO-Link as an option
Robust sensor technology unit thanks to magnetic scanning
User guidance through status LEDs
Mechanically compatible with the DA09S position indicator
IP53 protection class, IP65 as an option
Industry 4.0 ready
