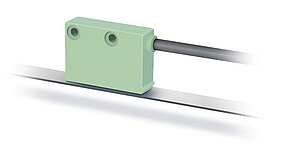

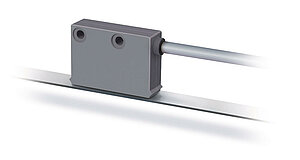

Magnetic sensor MSK400/1
Compact sensor, incremental, digital interface, resolution 1 mm
- Max. resolution 1 mm
- Repeat accuracy ±1 increment
- Works with magnetic tape MB400
- Reading distance ≤4 mm
Ben
King
Inside Sales
Edward
Stuart
Product Manager Business Unit MagLine
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Housing
white plastic
Sensor/band reading distance
0.1 … 4 mm
Cable sheath
PUR, suitable for drag-chain use
4-core ø 4.8-0.4 mm
Cable bending radius
5x cable diameter
static
7.5x cable diameter
dynamic
Service life of cable
>5
Million cycles
Under the following test conditions:
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
reverse polarity protection
Current consumption
<20
mA
unloaded
Output circuit
PP
Output signals
A, B
90° off-phase
Output signal level high
>UB - 3.5 V
Output signal level low
<2
V
Latency
1.5
µs
Real-time requirement
speed-proportional signal output
Type of connection
open cable end
plug connector
7-pole
Signal patterns
Feature
Technical Specifications
Enhancement
Resolution
1
mm
with quadruple evaluation
System accuracy
±(1 + 0.03 x L) mm, L in m
at TU = 20° C
Repeat accuracy
±1
mm
Measuring range
∞
Travel speed
≤10
m/s
Feature
Technical Specifications
Enhancement
Ambient temperature
-10 … 70 °C
Storage temperature
-30 … 80 °C
Relative humidity
100
%
condensation admissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP67
EN 60529
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6
More information
pin assignment
not inverted
|
Signal |
E1 |
E6X |
|
GND |
black |
1 |
|
A |
red |
2 |
|
B |
orange |
3 |
|
nc |
4 |
|
|
+UB |
brown |
5 |
|
nc |
6 |
|
|
nc |
7 |
|
|
Shield |
white |
Hint for mounting
|
A, Sensor/tape reading distance |
≤4 mm |
|
B, Lateral offset |
±2 mm |
|
C, Alignment error |
±3° |
|
D, Longitudinal inclination |
±3° |
|
E, Lateral inclination |
±3° |
Symbolic representation
System components
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Type of connection
E1
Cable length
02.0
02.0
20 m, in intervals of 1 m
Scope of delivery
- MSK400/1
- Fastening set
- Installation Instructions
